LX6P7000ATA K2GP7000PA Ford Edge 8F35 Transmission

OE NO.: LX6P7000ATA K2GP7000PA
Model Number: 8F35
Transmission Speeds: 8
Gearbox Type: Automatic
Product description: Application: Ford SUVs & Crossovers: Edge: 2.0L EcoBoost (2019 - 2024) Escape: 1.5L EcoBoost, 2.0L EcoBoost (2020 - 2025) Bronco Sport: 1.5L EcoBoost, 2.0L EcoBoost (2021 - 2025) Ford Pas
INQUIRY

Model Number	8F35
MOQ	1 Pcs
Condition	Remanufactured
Warranty	6 Months

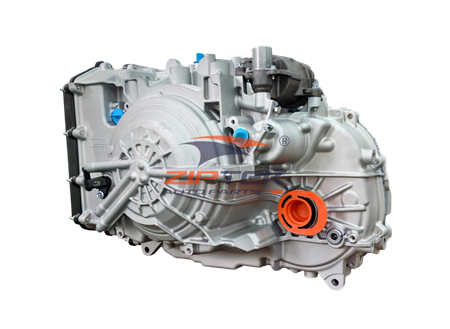

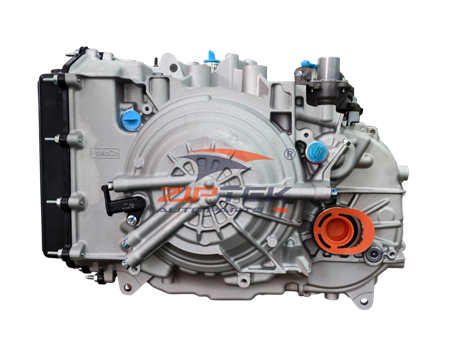

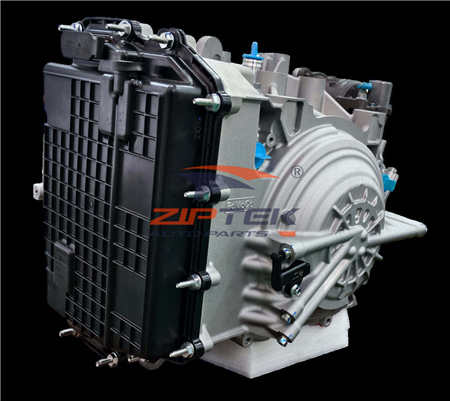

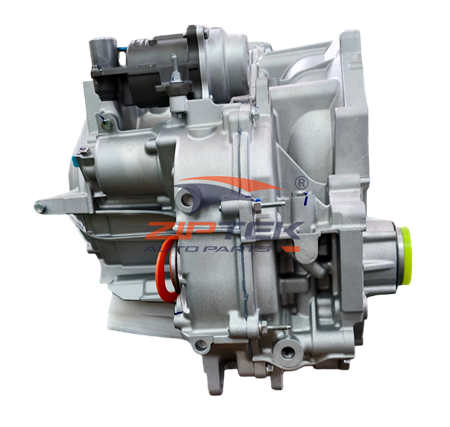

The automatic transmission assembly with reference numbers LX6P7000ATA and K2GP7000PA is designed for the Ford 8F35 8-speed automatic transmission. This advanced unit features a wider gear ratio spread and SelectShift technology, delivering smoother acceleration and enhanced fuel efficiency for the Ford Edge, Escape, and related platforms.

Quick Specifications:

Part Numbers: LX6P7000ATA / K2GP7000PA (Ford OEM format)
Transmission Model: 8F35 (8-Speed Automatic)
Configuration: Transverse FWD / AWD compatible
Max Input Torque: ~350-400 Nm
Fluid Type: Mercon ULV (Ultra Low Viscosity)
Fluid Capacity: ~6.5 - 7.5 Liters (dry fill)

Applications:

Ford Escape (2020-present, 1.5L/2.0L EcoBoost variants)
Ford Edge (2019-present, 2.0L EcoBoost variants)
Ford Focus (Select global markets, latest generations)
Ford Bronco Sport (1.5L EcoBoost variants)
Lincoln Corsair / Nautilus (2.0L EcoBoost variants)

Complete Assembly Includes:

✅ Transmission case with optimized planetary gear sets
✅ Torque converter with lock-up clutch
✅ Valve body with advanced solenoid pack
✅ Integrated Transmission Control Module (TCM)
✅ Oil pump, clutch packs, and speed sensors
✅ Sealing gaskets and O-rings

Key Features:

✅ 8-speed architecture for optimized highway cruising and fuel economy
✅ SelectShift capability for manual gear selection
✅ Ultra-low viscosity fluid compatibility for reduced parasitic drag
✅ Adaptive shift logic for personalized driving dynamics
✅ Compact packaging for transverse engine bays

Technical Notes:

Critical Installation Requirements:

Fluid Specification: Must use Mercon ULV fluid exclusively. Using older Mercon LV or standard ATF will cause severe shift issues and internal damage.
TCM Programming: As-built data and adaptation resets must be performed using Ford FDRS or IDS diagnostic tools after installation.
Torque Converter: Ensure full seating into the transmission oil pump before mating to the engine block to prevent catastrophic pump failure.
Cooler Flushing: Mandatory flushing of the transmission cooler and lines to prevent cross-contamination from the failed unit.

Common Issues & Maintenance:

Shift Quality: The 8F35 relies heavily on adaptive learning; rough shifts immediately after installation usually require a TCM reset and a specific drive cycle relearning procedure.
Fluid Service: Although sometimes marketed as "lifetime" fluid, regular Mercon ULV fluid changes (every 60,000–80,000 km) are highly recommended for long-term durability.
Thermal Management: Ensure the transmission cooler and radiator are free of debris to prevent fluid degradation under heavy loads or towing.
