Renault
Renault Master Trafic 2.2L 4412023 4416483 G9U G9T Engine Cylinder Head
- Engine:G9U G9T
- Displacement: 2.2L
- OE NO.:4412023
- OE NO.: 4416483
- Product description: Applications: * Renault Avantime 1 (D66) in 2002 – 2003; * Renault Espace 3 (J66) in 2000 – 2002; Espace 4 (J81) in 2002 – 2007; * Renault Laguna 2 (X74) in 2002 – 2007; * Renault Master 2 (X70)
|
Engine Code |
G9U G9T |
|
Displacement |
2.2L |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

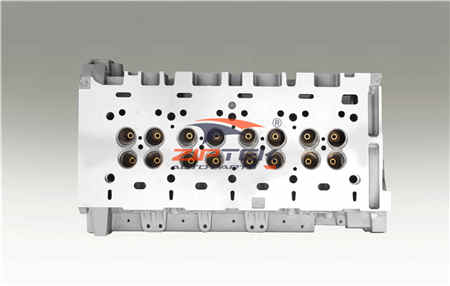

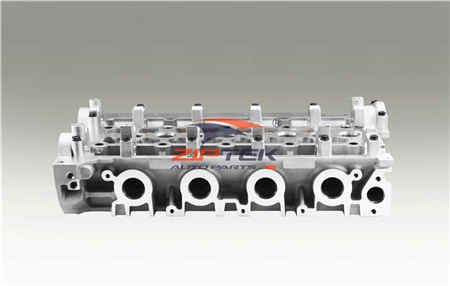

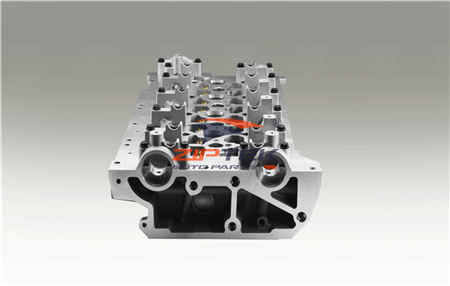

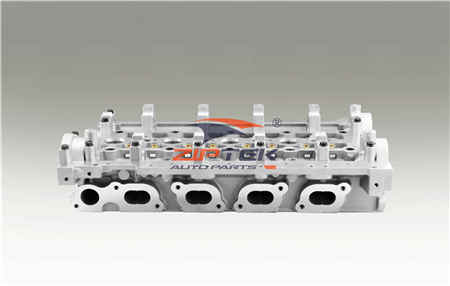

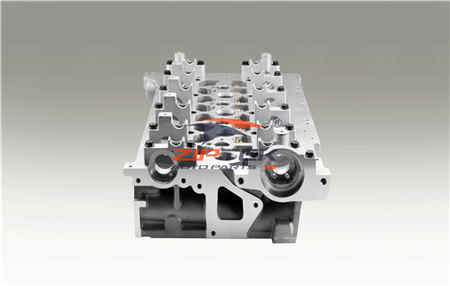

The cylinder head assembly with reference numbers 4412023 and 4416483 is designed for Renault G9U and G9T 2.2L dCi diesel engines. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Renault Master, Trafic, Nissan Interstar, and Opel Movano models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for light commercial vehicle and passenger van applications.
Technical Features:
-
Reference Numbers: 4412023 / 4416483
-
Type: Complete Cylinder Head Assembly
-
Valve Configuration: DOHC 16-Valve
-
Material: Aluminum Alloy
-
Application: G9U / G9T 2.2L dCi Diesel Engine
Engine Parameters:
-
Engine Code: G9U / G9T (G9U-630 / G9U-650 / G9T-700 variants)
-
Displacement: 2.2 L (2,188 cc)
-
Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
-
Power Output: 66-107 kW (90-145 HP) @ 3500 RPM
-
Torque: 260-320 Nm @ 1500-2500 RPM
-
Fuel System: Common Rail Direct Injection (dCi) + VGT
-
Compression Ratio: 18.0:1
-
Bore × Stroke: 87 mm × 93 mm
-
Emission Standard: Euro 3 / Euro 4 / Euro 5
Suitable Models:
-
Renault Master II / III (2000+)
-
Renault Trafic II (2001-2014)
-
Nissan Interstar (2002-2010)
-
Opel Movano / Vauxhall Movano
-
Nissan Primastar (select G9T applications)
The cylinder head assembly with reference numbers 4412023 and 4416483 is designed for Renault G9U and G9T 2.2L dCi diesel engines. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Renault Master, Trafic, Nissan Interstar, and Opel Movano models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for light commercial vehicle and passenger van applications.
Technical Features:
- Reference Numbers: 4412023 / 4416483
- Type: Complete Cylinder Head Assembly
- Valve Configuration: DOHC 16-Valve
- Material: Aluminum Alloy
- Application: G9U / G9T 2.2L dCi Diesel Engine
Engine Parameters:
- Engine Code: G9U / G9T (G9U-630 / G9U-650 / G9T-700 variants)
- Displacement: 2.2 L (2,188 cc)
- Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
- Power Output: 66-107 kW (90-145 HP) @ 3500 RPM
- Torque: 260-320 Nm @ 1500-2500 RPM
- Fuel System: Common Rail Direct Injection (dCi) + VGT
- Compression Ratio: 18.0:1
- Bore × Stroke: 87 mm × 93 mm
- Emission Standard: Euro 3 / Euro 4 / Euro 5
Suitable Models:
- Renault Master II / III (2000+)
- Renault Trafic II (2001-2014)
- Nissan Interstar (2002-2010)
- Opel Movano / Vauxhall Movano
- Nissan Primastar (select G9T applications)
