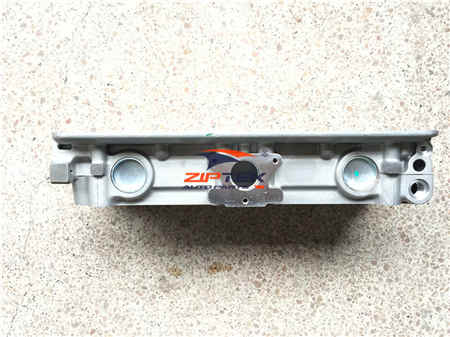

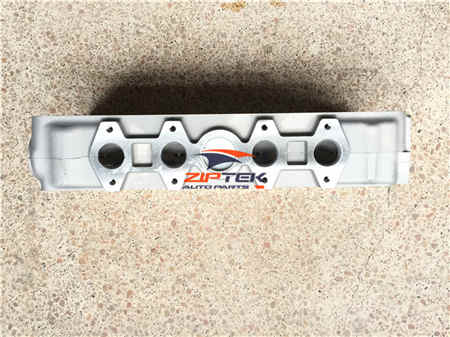

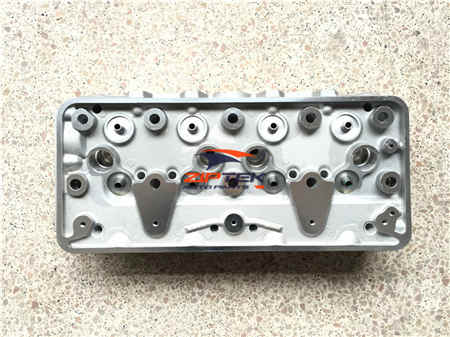

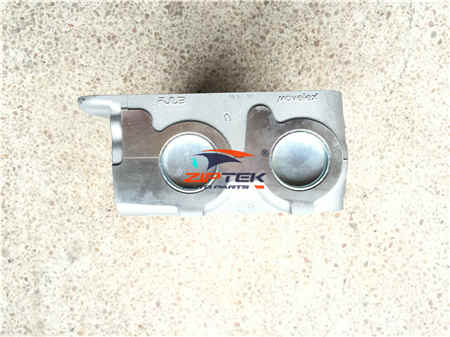

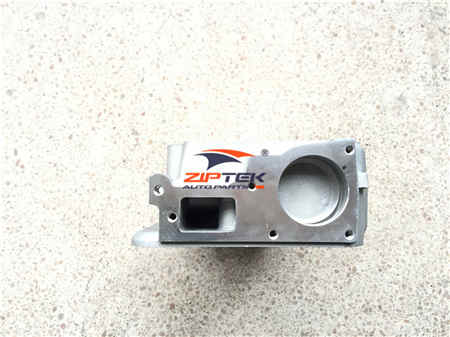

The cylinder head assembly with reference numbers 910058 and 02.00.C1 is designed for Peugeot XM7, XN1, XN1P, and XC7 series inline-4 gasoline engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Peugeot 504, 505, 404, and select Volvo models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for classic Peugeot vehicles and restoration projects.

---

Technical Features:

• Reference Numbers: 910058 / 02.00.C1
• Type: Complete Cylinder Head Assembly
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: XM7 / XN1 / XN1P / XC7 Inline-4 Gasoline Engine

---

Engine Parameters:

• Engine Code: XN1 / XM7 / XC7 / XN1P
• Displacement: 1.8 L (1,796 cc) / 2.0 L (1,971-1,995 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated
• Power Output: 65-85 kW (88-115 HP) @ 5250-5500 RPM
• Torque: 145-165 Nm @ 3000-3500 RPM
• Fuel System: Carburetor (Solex/Weber) / Mechanical Fuel Injection (XM7)
• Compression Ratio: 8.8:1 - 9.3:1 (variant-dependent)
• Bore × Stroke: 84 mm × 89 mm
• Firing Order: 1-3-4-2

---

Suitable Models:

• Peugeot 504 Sedan / Coupe / Cabriolet (1968-1983)
• Peugeot 505 Sedan / Break (1979-1992)
• Peugeot 404 (late production variants)
• Peugeot P4 / Military Vehicles
• Volvo 240 / 260 (select XM7 applications)
• Classic restoration & rally projects
