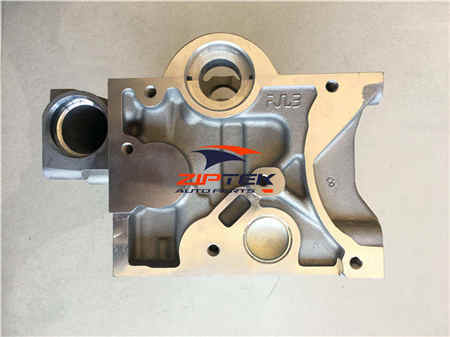

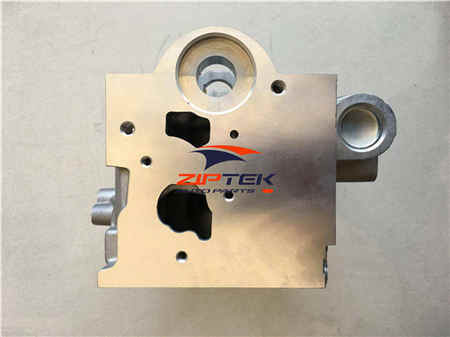

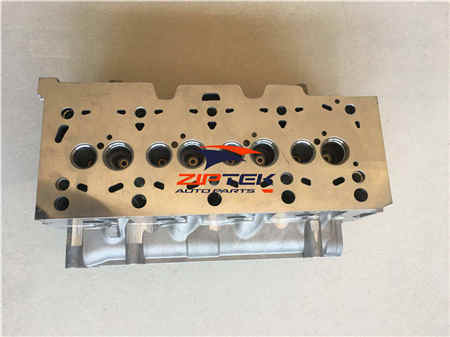

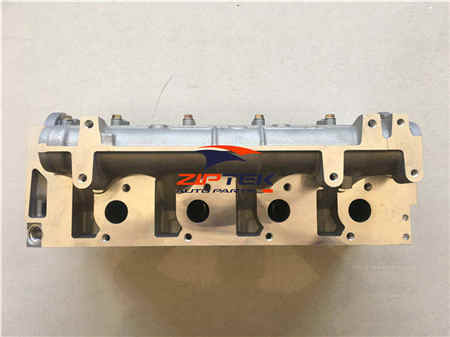

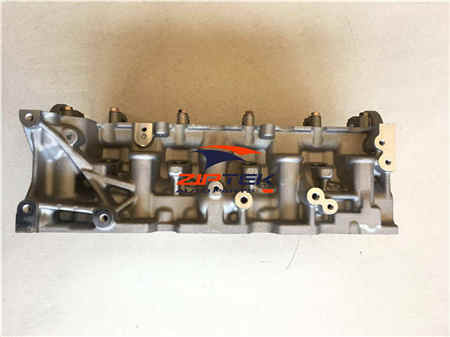

The cylinder head with reference number 110415795R is designed for Renault-Kia K9K 1.5L dCi diesel engines. This precision-engineered component features aluminum alloy construction with SOHC 8-valve configuration, compatible with Renault Megane, Clio, Kangoo, and Dacia Logan, Sandero models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.

---

Technical Features:

• Reference Number: 110415795R
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Aluminum Alloy
• Application: K9K 1.5L dCi Diesel Engine

---

Engine Parameters:

• Engine Code: K9K (K9K-700 / K9K-722 / K9K-732 variants)
• Displacement: 1.5 L (1,461 cc)
• Configuration: Inline-4 SOHC, Turbocharged & Intercooled
• Power Output: 48-81 kW (65-110 HP) @ 4000 RPM
• Torque: 160-240 Nm @ 1750-2000 RPM
• Fuel System: Common Rail Direct Injection (dCi) + VGT
• Compression Ratio: 18.8:1
• Bore × Stroke: 76 mm × 80.5 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 4 / Euro 5 / Euro 6

---

Suitable Models:

• Renault Clio II / III / IV (2001+)
• Renault Megane II / III (2002-2016)
• Renault Kangoo I / II
• Renault Modus / Grand Modus
• Dacia Logan / Sandero / Duster
• Nissan Micra / Note (K9K-sourced variants)
• Mercedes-Benz Citan (select K9K applications)
