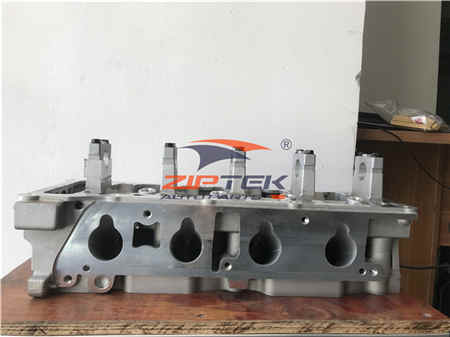

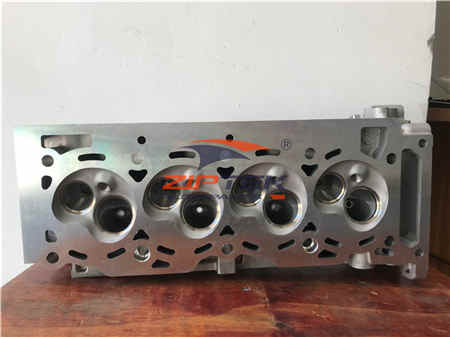

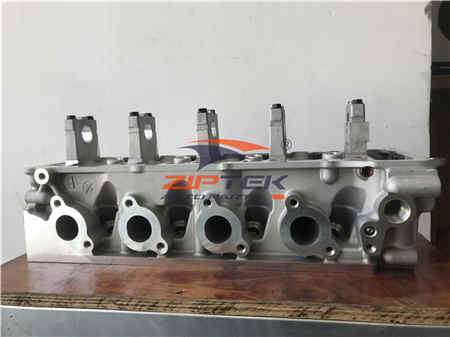

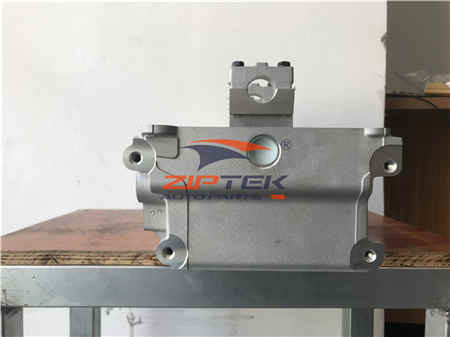

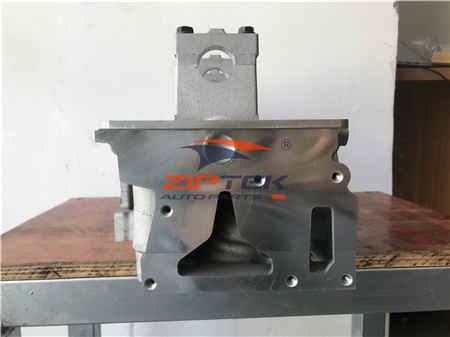

The cylinder head with reference number 9S6G-6049-RB / 9S6G6049RB is designed for Ford Zetec Rocam 1.6L SOHC gasoline engines. This precision-engineered component features aluminum alloy construction with 8-valve configuration and rocker arm valve actuation, compatible with Ford Fiesta, EcoSport, Ka, and Courier models in select markets. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.

---

Technical Features:

• Reference Number: 9S6G-6049-RB / 9S6G6049RB
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve + Rocker Arms
• Material: Aluminum Alloy
• Application: Zetec Rocam 1.6L Gasoline Engine

---

Engine Parameters:

• Engine Code: Zetec Rocam 1.6L (F6JA / F6JB variants)
• Displacement: 1.6 L (1,597-1,599 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated
• Power Output: 70-80 kW (95-110 HP) @ 5500-6000 RPM
• Torque: 140-150 Nm @ 3500-4000 RPM
• Fuel System: Multi-Point Fuel Injection (MPI)
• Compression Ratio: 9.5:1
• Bore × Stroke: 73.9 mm × 93.0 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 4 / Euro 5

---

Suitable Models:

• Ford Fiesta Mk6 / Mk7 (2002-2017)
• Ford EcoSport (Brazilian/Global market, early models)
• Ford Ka (2008-2016)
• Ford Courier / Ikon (select regions)
• Ford Festiva / Bantam (select markets)
