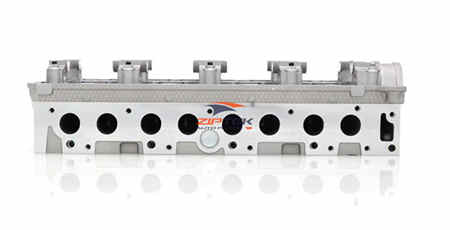

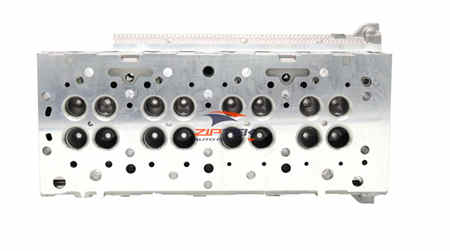

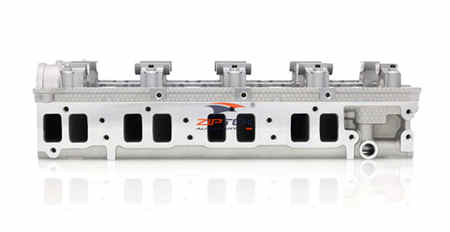

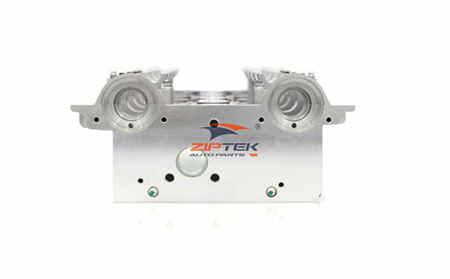

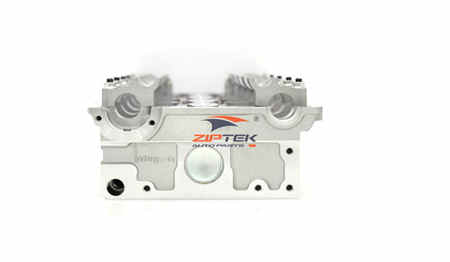

The cylinder head with reference number 22100-4X700 is designed for Hyundai-Kia J3 (D4CB) 2.9L CRDi diesel engines. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Hyundai Terracan, Kia Carnival, Sorento, and commercial van models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for SUV and light commercial vehicle applications.

---

Technical Features:

• Reference Number: 22100-4X700
• Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: J3 (D4CB) 2.9L CRDi Diesel Engine

---

Engine Parameters:

• Engine Code: J3 / D4CB (D4CB-A / D4CB-B variants)
• Displacement: 2.9 L (2,902 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Power Output: 90-120 kW (120-163 HP) @ 3800 RPM
• Torque: 290-343 Nm @ 1750-2000 RPM
• Fuel System: Common Rail Direct Injection (CRDi) + VGT
• Compression Ratio: 17.3:1
• Bore × Stroke: 91 mm × 111 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 3 / Euro 4

---

Suitable Models:

• Hyundai Terracan (2001-2007)
• Kia Carnival / Sedona (2002-2006)
• Kia Sorento BL (2.9 CRDi variants)
• Hyundai Porter / Mighty (commercial variants)
• Kia Pregio / Besta (select markets)
