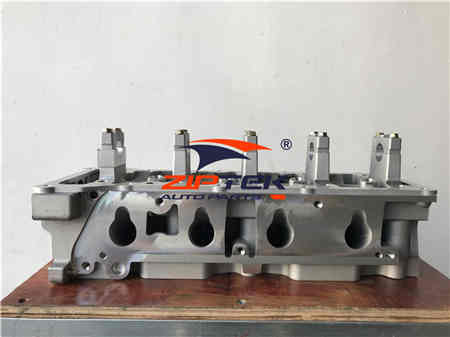

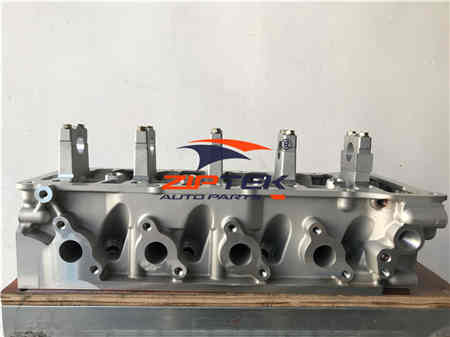

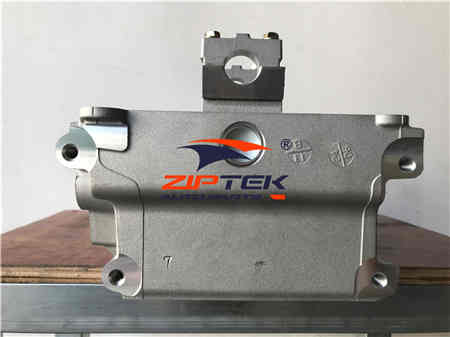

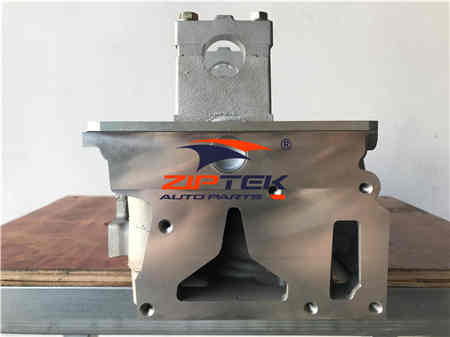

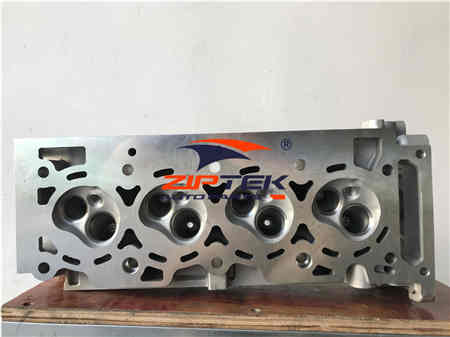

The OEM cylinder head with part numbers 9S5G-6049-RB, 9S6G-6090A, and 9S5G6049RB is designed for Ford Zetec Rocam 1.0L SOHC gasoline engines. This precision-engineered component features aluminum alloy construction with 8-valve configuration, compatible with Ford Fiesta, Focus, Ka, and EcoSport models in select markets. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.

---

Technical Features:

• Part Numbers: 9S5G-6049-RB / 9S6G-6090A / 9S5G6049RB
• Type: Complete Cylinder Head Assembly
• Valve Configuration: SOHC 8-Valve
• Material: Aluminum Alloy
• Application: Zetec Rocam 1.0L Gasoline Engine

---

Engine Parameters:

• Engine Code: Zetec Rocam 1.0L (F6JA / F6JB variants)
• Displacement: 1.0 L (999 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated
• Power Output: 50-55 kW (68-75 HP) @ 5500-6000 RPM
• Torque: 90-95 Nm @ 3500-4000 RPM
• Fuel System: Multi-Point Fuel Injection (MPI)
• Compression Ratio: 9.5:1
• Bore × Stroke: 73.9 mm × 58.4 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 4 / Euro 5

---

Suitable Models:

• Ford Fiesta Mk5 / Mk6 (2002-2012)
• Ford Focus Mk1 / Mk2 (select markets)
• Ford Ka (1997-2008)
• Ford EcoSport (Brazilian market, early models)
• Ford Courier / Ikon (select regions)
