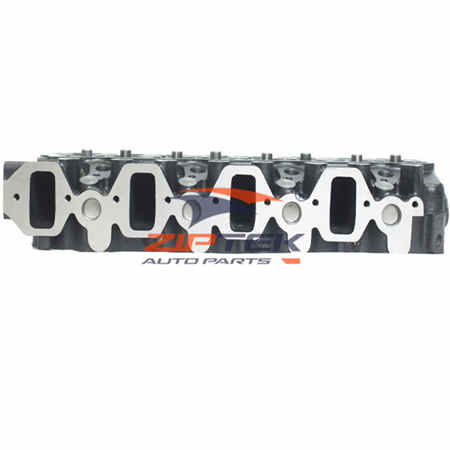

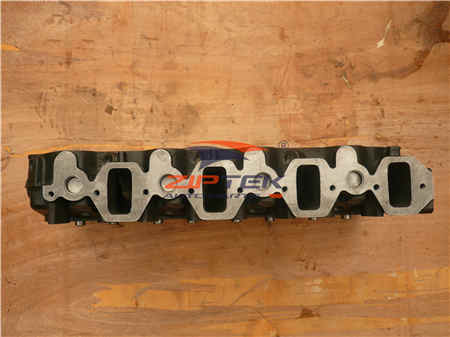

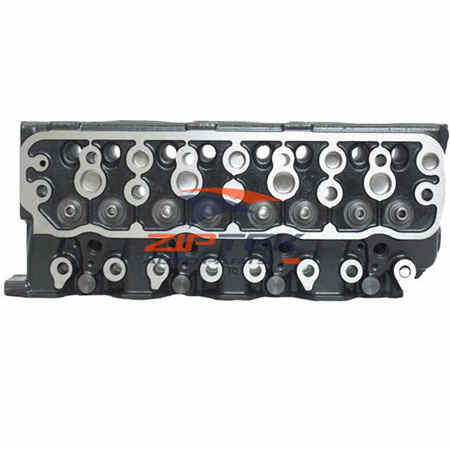

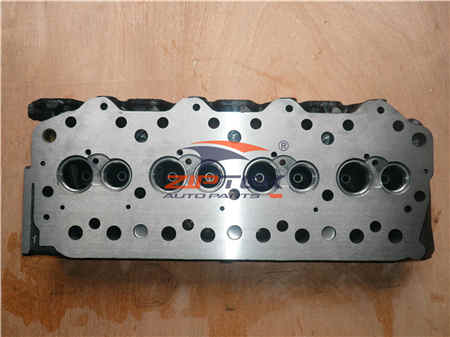

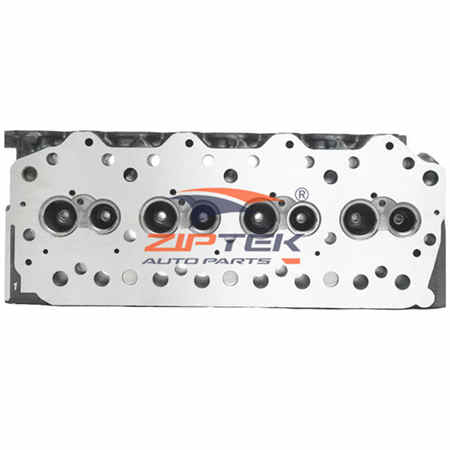

The cylinder head with reference number ME013334 is designed for Mitsubishi 4D33 4.2L diesel engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Mitsubishi Canter, Pajero, Delica, L300, and commercial vehicle platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for pickup truck, SUV, and light commercial vehicle applications.

---

Technical Features:

• Reference Number: ME013334
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: 4D33 4.2L Naturally Aspirated / Turbo Diesel Engine

---

Engine Parameters:

• Engine Code: 4D33 / 4D33-T / 4D33-TI (Mitsubishi Diesel Family)
• Displacement: 4.2 L (4,149 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated / Turbocharged Diesel
• Power Output:
  • NA: 70-77 kW (95-105 HP) @ 3500 RPM
  • Turbo: 85-92 kW (115-125 HP) @ 3500 RPM
• Torque:
  • NA: 245-265 Nm @ 2000 RPM
  • Turbo: 275-294 Nm @ 2000 RPM
• Fuel System: Indirect Injection (IDI) / Distributor Pump
• Compression Ratio: 21.0:1 - 23.0:1
• Bore × Stroke: 100 mm × 130 mm
• Firing Order: 1-3-4-2
• Emission Standard: Pre-Euro / Euro 1 / Local Standards

---

Suitable Models:

• Mitsubishi Canter (FB/FC/FD series, 4D33 variants)
• Mitsubishi Pajero / Montero (First/Second generation, diesel variants)
• Mitsubishi Delica / L300 / Express (4D33-powered variants)
• Mitsubishi L200 / Triton (early diesel variants)
• Mitsubishi Rosa Minibus (select 4D33 applications)
• Aftermarket conversions & commercial utility applications
