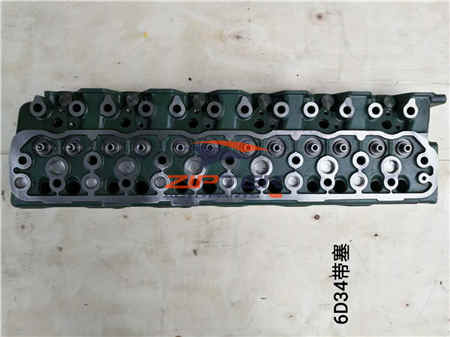

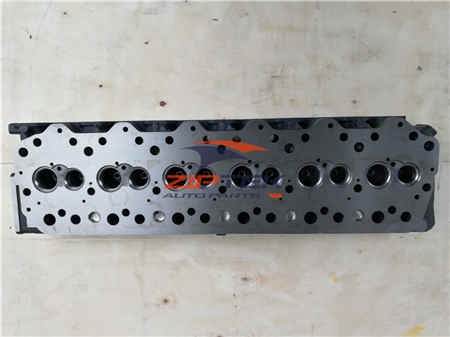

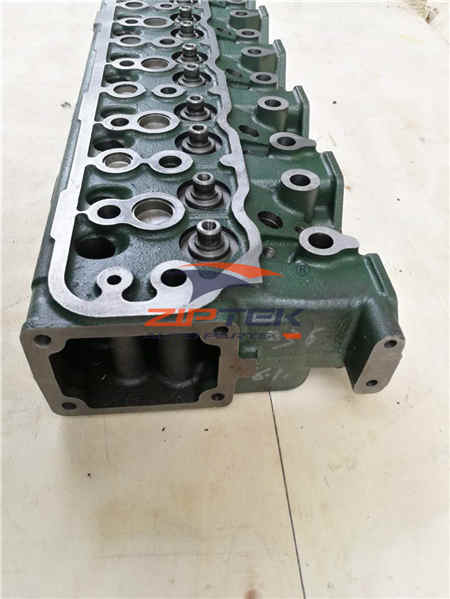

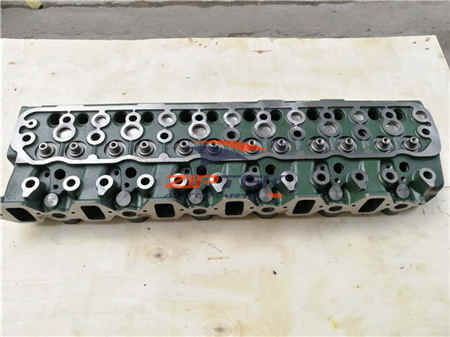

The cylinder head with reference number ME051714 is designed for Mitsubishi 6D34 5.9L turbocharged diesel engines. This precision-engineered component features cast iron construction with OHV 12-valve configuration, compatible with Mitsubishi Fuso Canter, Fighter, Komatsu construction equipment, and heavy-duty commercial vehicle platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and exceptional durability for medium-duty truck and industrial equipment applications.

---

Technical Features:

• Reference Number: ME051714
• Type: Cylinder Head (Bare)
• Valve Configuration: OHV 12-Valve (2 valves per cylinder, 6-cylinder)
• Material: Cast Iron
• Application: 6D34 / 6D34-T / 6D34-TL 5.9L Turbocharged Diesel Engine

---

Engine Parameters:

• Engine Code: 6D34 / 6D34-T / 6D34-TL / 6D34-PT (Mitsubishi Heavy-Duty Diesel Family)
• Displacement: 5.9 L (5,899 cc)
• Configuration: Inline-6 OHV, Turbocharged & Intercooled
• Power Output: 110-147 kW (150-200 HP) @ 2500-2900 RPM
• Torque: 490-637 Nm @ 1400-1800 RPM
• Fuel System: Direct Injection (DI) / Inline Fuel Pump
• Compression Ratio: 17.0:1 - 18.0:1
• Bore × Stroke: 102 mm × 120 mm
• Firing Order: 1-5-3-6-2-4
• Emission Standard: Pre-Euro / Euro 1 / Euro 2 / Local Industrial Standards

---

Suitable Models:

• Mitsubishi Fuso Canter (FE/FG/FH series, 6D34 variants)
• Mitsubishi Fuso Fighter (FK/FM series, 6D34-powered)
• Komatsu WA250 / WA320 Wheel Loader (6D34-sourced variants)
• Komatsu PC120 / PC200 Excavator (select industrial variants)
• Mitsubishi Rosa / Aero Midi Bus (6D34-powered variants)
• Industrial generators, pumps & stationary power applications
