Audi VW Skoda

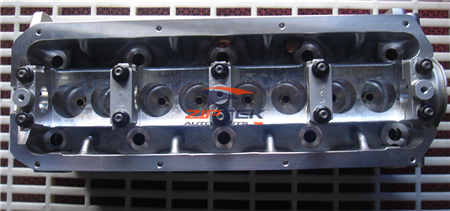

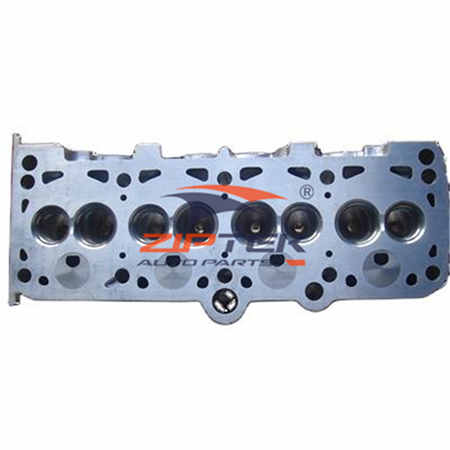

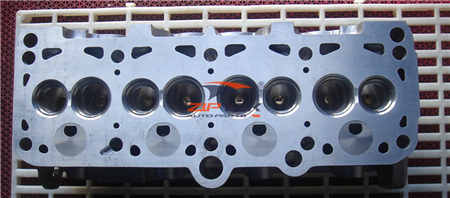

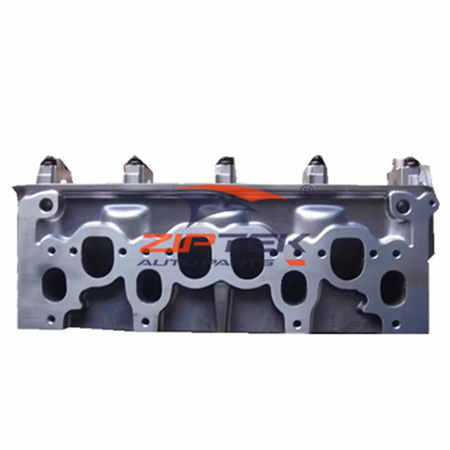

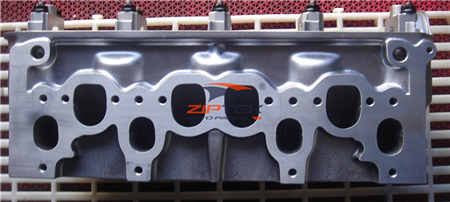

VW TRANSPORTER T4 908039 028103351A 1.9D 1X Cylinder Head
- Engine: 1X
- Displacement: 1.9D
- OE No.: 028103351A
- AMC No.:908039
- Product description: Applications: VW TRANSPORTER VW TRANSPORTER T4 Box VW TRANSPORTER MK IV Box
|
Engine Code |
1X |
|
Displacement |
1.9D |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |
The cylinder head with reference numbers 908039 and 028103351A is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code 1X. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Transporter T4, Golf, and related classic platforms.
Quick Specifications:
-
Part Numbers: 908039 / 028103351A (VW OEM format)
-
Engine Code: 1X (EA827 diesel family)
-
Displacement: 1.9 L (1,896 cc)
-
Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) with Distributor Pump
-
Material: Aluminum Alloy
-
Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 44-50 kW (60-68 HP) @ 3,800-4,200 RPM
-
Torque: 125-140 Nm @ 2,000-2,500 RPM
-
Compression Ratio: 23.0:1
-
Emission Standard: Pre-Euro / Euro 1
Applications:
-
VW Transporter T4 (1990-2003, 1.9D variants)
-
VW Golf MK3 / Vento (1.9D variants)
-
VW Caddy / LT (select 1.9D applications)
-
SEAT Ibiza / Córdoba (early 1.9D variants)
-
Classic VW restoration & aftermarket projects
The cylinder head with reference numbers 908039 and 028103351A is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code 1X. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Transporter T4, Golf, and related classic platforms.
Quick Specifications:
-
Part Numbers: 908039 / 028103351A (VW OEM format)
-
Engine Code: 1X (EA827 diesel family)
-
Displacement: 1.9 L (1,896 cc)
-
Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) with Distributor Pump
-
Material: Aluminum Alloy
-
Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 44-50 kW (60-68 HP) @ 3,800-4,200 RPM
-
Torque: 125-140 Nm @ 2,000-2,500 RPM
-
Compression Ratio: 23.0:1
-
Emission Standard: Pre-Euro / Euro 1
Applications:
-
VW Transporter T4 (1990-2003, 1.9D variants)
-
VW Golf MK3 / Vento (1.9D variants)
-
VW Caddy / LT (select 1.9D applications)
-
SEAT Ibiza / Córdoba (early 1.9D variants)
-
Classic VW restoration & aftermarket projects
The cylinder head with reference numbers 908039 and 028103351A is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code 1X. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Transporter T4, Golf, and related classic platforms.
Quick Specifications:
- Part Numbers: 908039 / 028103351A (VW OEM format)
- Engine Code: 1X (EA827 diesel family)
- Displacement: 1.9 L (1,896 cc)
- Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
- Fuel System: Indirect Injection (IDI) with Distributor Pump
- Material: Aluminum Alloy
- Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
- Power Output: 44-50 kW (60-68 HP) @ 3,800-4,200 RPM
- Torque: 125-140 Nm @ 2,000-2,500 RPM
- Compression Ratio: 23.0:1
- Emission Standard: Pre-Euro / Euro 1
Applications:
- VW Transporter T4 (1990-2003, 1.9D variants)
- VW Golf MK3 / Vento (1.9D variants)
- VW Caddy / LT (select 1.9D applications)
- SEAT Ibiza / Córdoba (early 1.9D variants)
- Classic VW restoration & aftermarket projects
