Audi VW Skoda

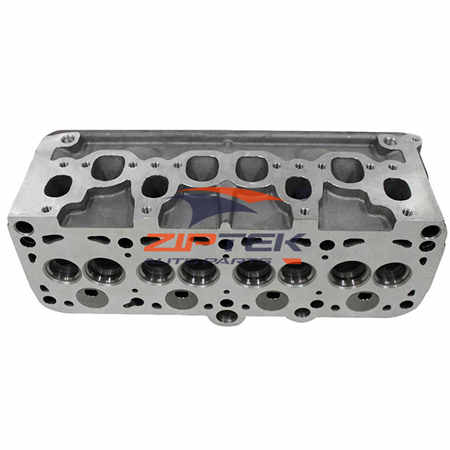

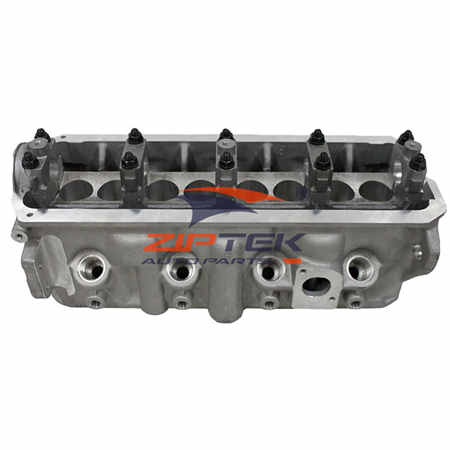

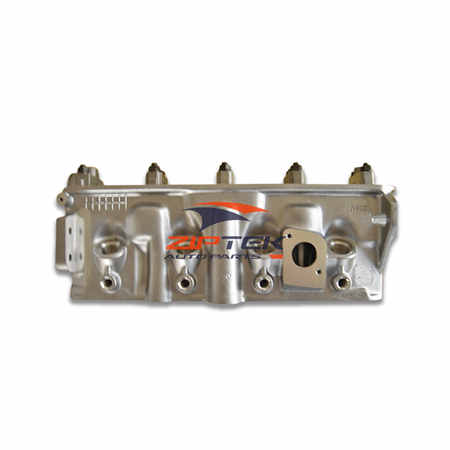

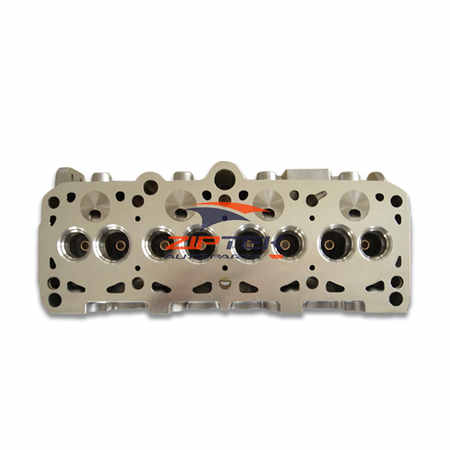

VW Transporter T4 028103351L 028103351N 1.9D ADE Cylinder Head
- Engine: ADE
- Displacement: 1.9D
- OE No.: 028103351L
- OE No.:028103351N
- Product description: Applications: VW Transporter T4 VW Caddy VW Polo
|
Engine Code |
ADE |
|
Displacement |
1.9D |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |
The cylinder head with reference numbers 028103351L and 028103351N is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code ADE. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Transporter T4 and related commercial vehicle platforms.
Quick Specifications:
-
Part Numbers: 028103351L / 028103351N (VW OEM format)
-
Engine Code: ADE (EA827 diesel family)
-
Displacement: 1.9 L (1,896 cc)
-
Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) with Distributor Pump
-
Material: Aluminum Alloy
-
Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 44-50 kW (60-68 HP) @ 3,800-4,200 RPM
-
Torque: 125-140 Nm @ 2,000-2,500 RPM
-
Compression Ratio: 23.0:1
-
Emission Standard: Pre-Euro / Euro 1
Applications:
-
VW Transporter T4 (1990-2003, 1.9D ADE variants)
-
VW Caddy / LT (select 1.9D applications)
-
VW Golf MK3 / Vento (1.9D variants)
-
SEAT Ibiza / Córdoba (early 1.9D variants)
-
Classic VW restoration & aftermarket projects
The cylinder head with reference numbers 028103351L and 028103351N is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code ADE. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Transporter T4 and related commercial vehicle platforms.
Quick Specifications:
-
Part Numbers: 028103351L / 028103351N (VW OEM format)
-
Engine Code: ADE (EA827 diesel family)
-
Displacement: 1.9 L (1,896 cc)
-
Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) with Distributor Pump
-
Material: Aluminum Alloy
-
Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 44-50 kW (60-68 HP) @ 3,800-4,200 RPM
-
Torque: 125-140 Nm @ 2,000-2,500 RPM
-
Compression Ratio: 23.0:1
-
Emission Standard: Pre-Euro / Euro 1
Applications:
-
VW Transporter T4 (1990-2003, 1.9D ADE variants)
-
VW Caddy / LT (select 1.9D applications)
-
VW Golf MK3 / Vento (1.9D variants)
-
SEAT Ibiza / Córdoba (early 1.9D variants)
-
Classic VW restoration & aftermarket projects
The cylinder head with reference numbers 028103351L and 028103351N is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code ADE. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Transporter T4 and related commercial vehicle platforms.
Quick Specifications:
- Part Numbers: 028103351L / 028103351N (VW OEM format)
- Engine Code: ADE (EA827 diesel family)
- Displacement: 1.9 L (1,896 cc)
- Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
- Fuel System: Indirect Injection (IDI) with Distributor Pump
- Material: Aluminum Alloy
- Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
- Power Output: 44-50 kW (60-68 HP) @ 3,800-4,200 RPM
- Torque: 125-140 Nm @ 2,000-2,500 RPM
- Compression Ratio: 23.0:1
- Emission Standard: Pre-Euro / Euro 1
Applications:
- VW Transporter T4 (1990-2003, 1.9D ADE variants)
- VW Caddy / LT (select 1.9D applications)
- VW Golf MK3 / Vento (1.9D variants)
- SEAT Ibiza / Córdoba (early 1.9D variants)
- Classic VW restoration & aftermarket projects
