Nissan
Nissan Versa Tiida 1.6 HR16 HR16DE Complete Cylinder Head
- Engine: HR16 HR16DE
- Displacement: 1.6
- OE No.: /
- OE No.:/
- Product description: Applications: * Nissan Cube 3 (Z12) in 2009 – 2011; * Nissan Bluebird Sylphy G11 in 2005 – 2012; * Nissan Juke 1 (F15) in 2010 – 2019; * Nissan Kicks 1 (P15) in 2016 – …; * Nissan Latio N17 in 2
|
Engine Code |
HR16 HR16DE |
|
Displacement |
1.6 |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

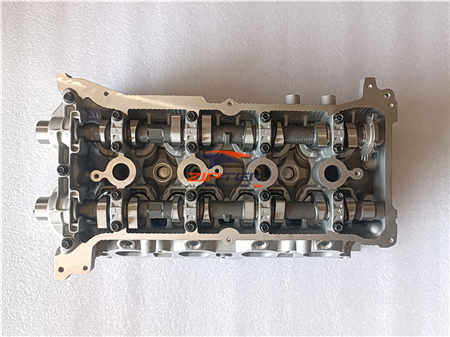

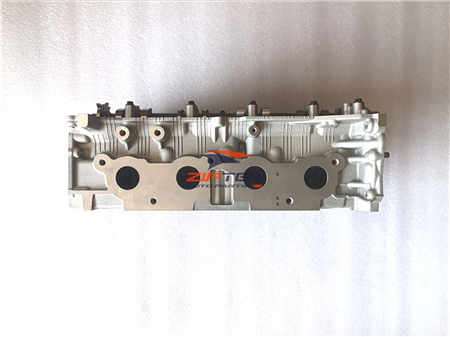

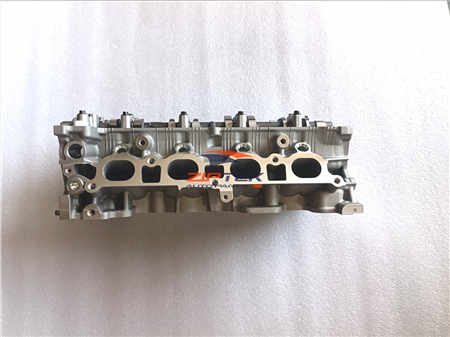

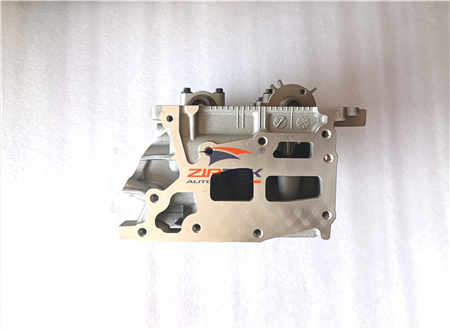

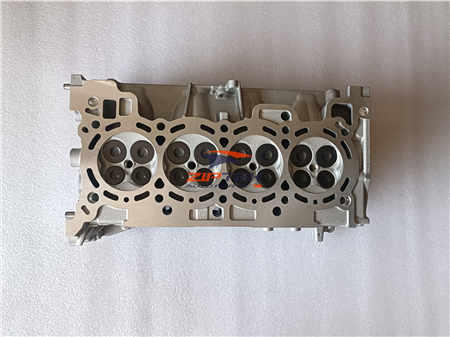

The complete cylinder head assembly designed for Nissan HR16DE 1.6L naturally aspirated gasoline engines. This aluminum alloy cylinder head features DOHC 16-valve configuration with multi-point fuel injection and variable valve timing (VVT) compatibility, delivering reliable performance for Nissan Versa, Tiida, Note, Micra, and related compact vehicle platforms.
Quick Specifications:
-
Part Number: Nissan OEM format (verify by engine serial number)
-
Engine Code: HR16DE / HR16 (HR Engine Family)
-
Displacement: 1.6 L (1,598 cc)
-
Configuration: Inline-4 DOHC 16V, Naturally Aspirated
-
Fuel System: Multi-Point Fuel Injection (MPI) + VVT
-
Material: Aluminum Alloy
-
Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
-
Valve Train: Hydraulic lifters, roller finger followers
Performance Data:
-
Power Output: 77-81 kW (105-110 HP) @ 5,600-6,000 RPM
-
Torque: 142-153 Nm @ 4,000-4,400 RPM
-
Compression Ratio: 9.8:1 - 10.7:1 (variant-dependent)
-
Redline: 6,200-6,500 RPM
-
Emission Standard: Euro 4 / Euro 5 / China IV / China V
Complete Assembly Typically Includes:
✅ Cylinder head casting with integrated camshaft bearing bores
✅ Intake and exhaust valves with hardened seats
✅ Valve springs, retainers, and collets
✅ Camshafts (intake/exhaust with VVT phaser on intake, supplier-dependent)
✅ Roller finger followers / hydraulic lifters assembly
✅ Valve stem seals (pre-installed on new assemblies)
✅ Camshaft oil seals and spark plug tube seals
✅ VVT solenoid mounting surface and oil control valve
✅ Core plugs and basic mounting hardware
✅ Intake/exhaust port gasket surfaces machined to OEM spec
Note: Intake manifold, exhaust manifold, VVT solenoid, ignition coils, fuel injectors, and throttle body are typically sold separately.
Applications:
-
Nissan Versa / Sunny N17 (2011-present, 1.6 HR16DE variants)
-
Nissan Tiida C11 / C12 (2004-present, 1.6 HR16DE variants)
-
Nissan Note E11 / E12 (1.6 HR16DE variants)
-
Nissan Micra K13 / K14 (select 1.6 applications)
-
Nissan Livina / Grand Livina (1.6 HR16DE variants)
-
Renault Scala / Symbol (HR16DE-sourced variants)
-
Aftermarket engine rebuild & replacement projects
-
Fleet/taxi vehicle maintenance in global markets
