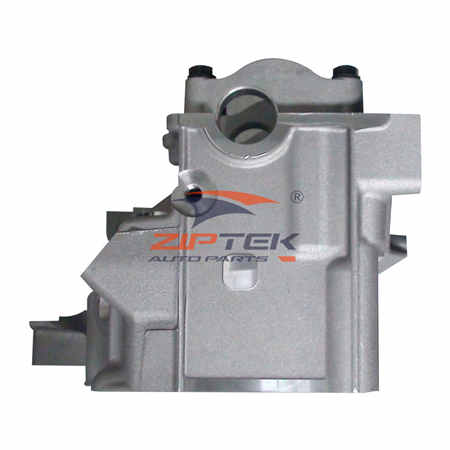

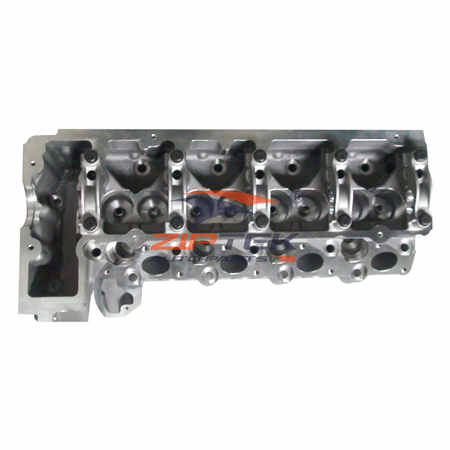

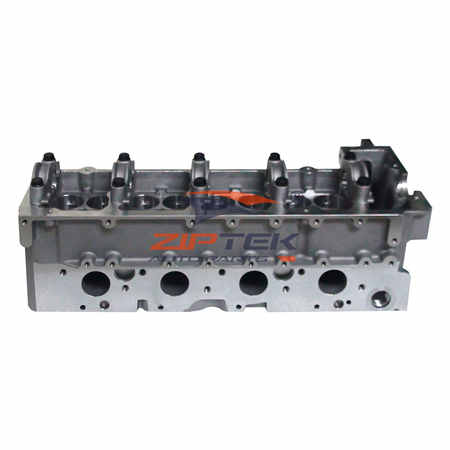

The cylinder head with reference number 6010106120 is designed for Mercedes-Benz OM601 / OM601.970 2.3L diesel engines. This aluminum alloy cylinder head features SOHC 10-valve configuration, delivering reliable performance for Mercedes Sprinter, T1, Vito, and related light commercial vehicle platforms.

---

Quick Specifications:

• Part Number: 6010106120 / 601 010 61 20 (Mercedes OEM format)
• Engine Codes: OM601 / OM601.970 / OM601.940 (OM601 family)
• Displacement: 2.3 L (2,299 cc)
• Configuration: Inline-5 SOHC 10V, Naturally Aspirated / Turbocharged
• Fuel System: Indirect Injection (IDI) with Distributor Pump
• Material: Aluminum Alloy
• Valve Configuration: SOHC 10-Valve (2 valves per cylinder)

---

Performance Data:

• Power Output: 58-70 kW (79-95 HP) @ 3,800-4,200 RPM (variant-dependent)
• Torque: 150-177 Nm @ 2,200-2,400 RPM
• Compression Ratio: 21.0:1 - 22.0:1
• Emission Standard: Euro 1 / Euro 2

---

Applications:

• Mercedes Sprinter 901 / 902 / 903 / 904 (1995-2006, 2.3D variants)
• Mercedes T1 / TN van (late production 2.3D applications)
• Mercedes Vito 638 / V-Class W638 (2.3D variants)
• Mercedes C-Class W202 (OM601 diesel variants, select markets)
• Commercial van, minibus & chassis cab conversions
