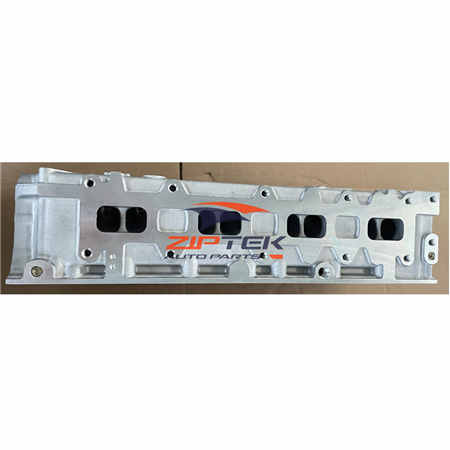

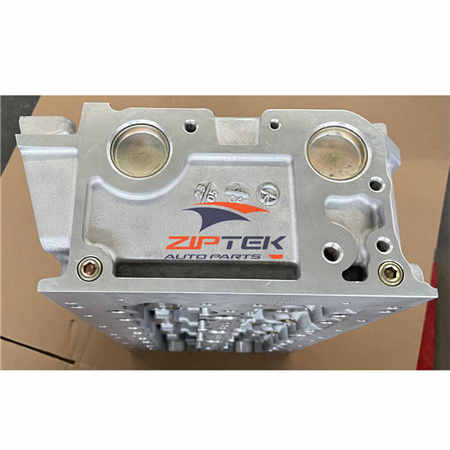

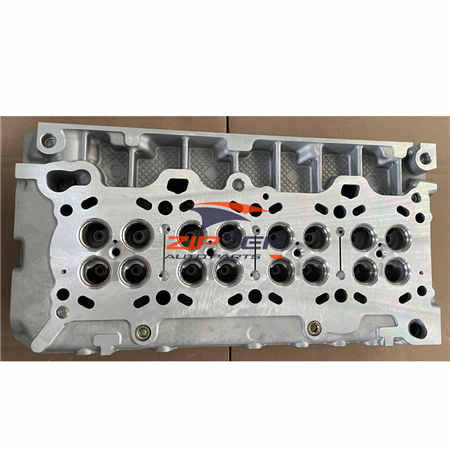

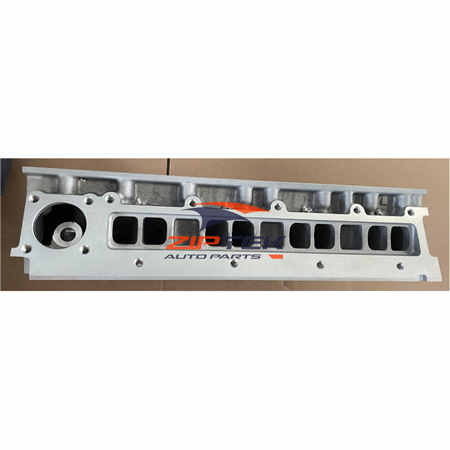

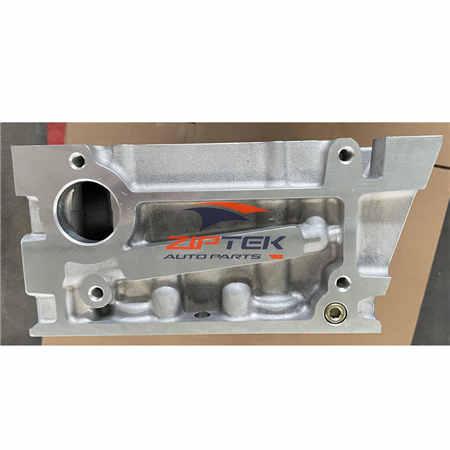

The cylinder head with reference number 5043708073 is designed for Iveco F1AE3481 2.3L JTD turbocharged diesel engines. This aluminum alloy cylinder head features DOHC 16-valve configuration with high-pressure common rail compatibility, delivering reliable performance for Iveco Daily, Massif, and related light commercial vehicle platforms.

---

Quick Specifications:

• Part Number: 5043708073 / 504370807 (Iveco OEM format)
• Engine Codes: FIAE3481A / F1AE3481B / F1AE3481C / F1AE0481C (F1A family)
• Displacement: 2.3 L (2,287 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Fuel System: Common Rail Direct Injection (JTD)
• Material: Aluminum Alloy
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)

---

Performance Data:

• Power Output: 70-107 kW (95-145 HP) @ 3,500 RPM (variant-dependent)
• Torque: 270-350 Nm @ 1,800-2,200 RPM
• Compression Ratio: 17.5:1 - 18.0:1
• Emission Standard: Euro 4 / Euro 5 / Euro 6

---

Applications:

• Iveco Daily 35C / 50C / 70C (2006-present, 2.3 JTD variants)
• Iveco Daily Chassis Cab / Van / Minibus configurations
• Iveco Massif (2.3 JTD variants)
• Fiat Ducato / Peugeot Boxer / Citroen Jumper (select F1A applications)
• Commercial van, ambulance, refrigerated truck & specialty conversions
