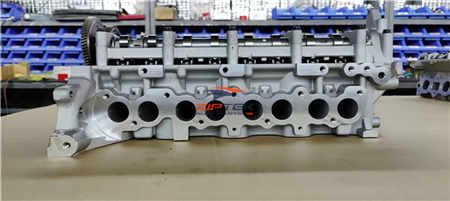

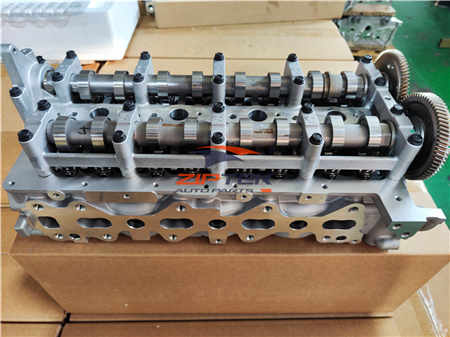

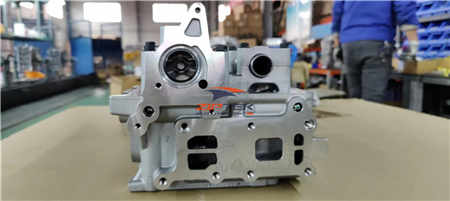

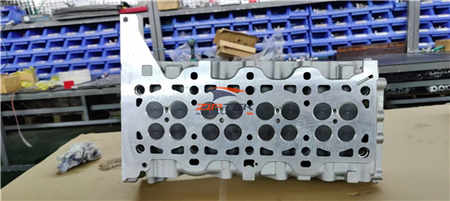

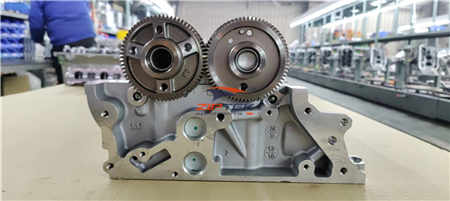

Kia Sorento Hyundai Santa Fe D4HB 2.2 Crdi Complete Cylinder Head
- Engine: D4HB
- Displacement: 2.2 Crdi
- OE No.: /
- OE No.:/
- Product description: Applications: Kia Sorento Kia Carnival Hyundai Santa Fe Hyundai Palisade
|
Engine Code |
D4HB |
|
Displacement |
2.2 Crdi |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |
The complete cylinder head assembly designed for Hyundai/Kia D4HB 2.2L common rail turbocharged diesel engines. This aluminum alloy cylinder head features DOHC 16-valve configuration with high-pressure common rail injection and variable geometry turbocharging compatibility, delivering reliable performance for Kia Sorento, Hyundai Santa Fe, and related mid-size SUV platforms.
Quick Specifications:
-
Part Number: Hyundai/Kia OEM format (verify by engine serial number)
-
Engine Code: D4HB / D4HA (R-Series 2.2 CRDi Family)
-
Displacement: 2.2 L (2,199 cc)
-
Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
-
Fuel System: Common Rail Direct Injection (CRDi) + VGT Turbo
-
Material: Aluminum Alloy
-
Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
-
Valve Train: Hydraulic lifters, roller finger followers
Performance Data:
-
Power Output: 145-150 kW (197-202 HP) @ 3,800 RPM
-
Torque: 421-440 Nm @ 1,750-2,750 RPM
-
Compression Ratio: 16.0:1 - 16.5:1
-
Boost Pressure: ~1.4-1.6 bar (variable geometry turbo)
-
Emission Standard: Euro 5 / Euro 6
Complete Assembly Typically Includes:
✅ Cylinder head casting with integrated camshaft bearing bores
✅ Intake and exhaust valves with hardened seats
✅ Valve springs, retainers, and collets
✅ Camshafts (intake/exhaust, supplier-dependent)
✅ Roller finger followers / hydraulic lifters assembly
✅ Valve stem seals (pre-installed on new assemblies)
✅ Camshaft oil seals and glow plug tube seals
✅ EGR passage mounting surfaces and coolant connections
✅ High-pressure fuel rail mounting bosses and injector sleeves
✅ Turbocharger oil feed/return passage bosses
✅ Core plugs and basic mounting hardware
Applications:
-
Kia Sorento XM / UM (2009-present, 2.2 CRDi D4HB variants)
-
Hyundai Santa Fe CM / DM / TM (2006-present, 2.2 CRDi variants)
-
Hyundai Grand Santa Fe (2013-2018, 2.2 CRDi variants)
-
Kia Carnival / Sedona (select 2.2 CRDi applications)
-
Hyundai Genesis / Equus (diesel variants, select markets)
-
Aftermarket engine rebuild & replacement projects
-
Fleet/taxi vehicle maintenance in global markets
