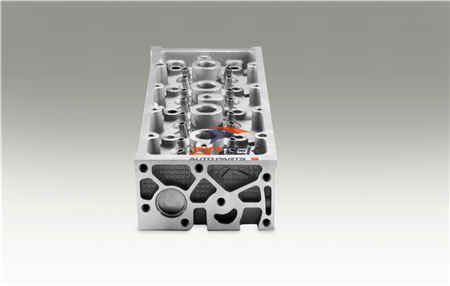

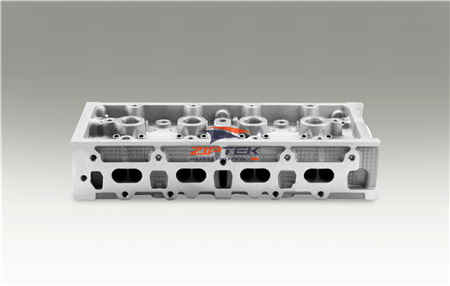

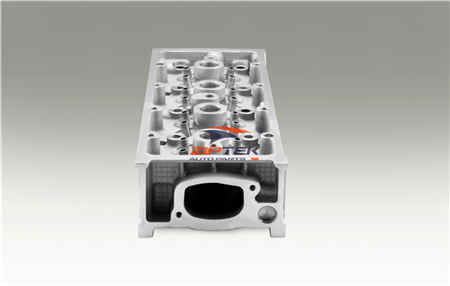

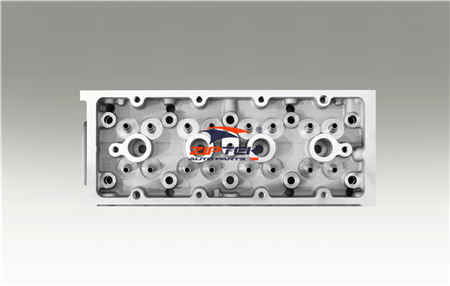

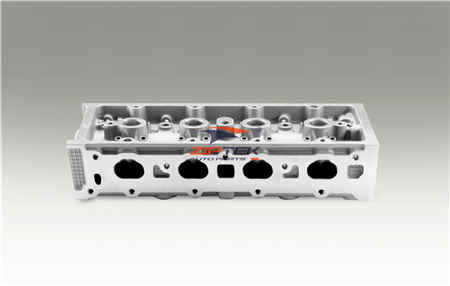

The cylinder head with reference numbers 71739156, 7958558, and 46526701 is designed for Fiat 188A5.000 1.9L turbo diesel engines. This precision-engineered component features aluminum alloy construction with SOHC 8-valve configuration, compatible with Fiat Punto, Siena, Palio, and Strada models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.

---

Technical Features:

• Reference Numbers: 71739156 / 7958558 / 46526701
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Aluminum Alloy
• Application: 188A5.000 1.9L Turbo Diesel Engine (JTD)

---

Engine Parameters:

• Engine Code: 188A5.000 (1.9 JTD family)
• Displacement: 1.9 L (1,910 cc)
• Configuration: Inline-4 SOHC, Turbocharged Diesel
• Power Output: 74-77 kW (100-105 HP) @ 4000 RPM
• Torque: 200-215 Nm @ 1500-2500 RPM
• Fuel System: Common Rail Direct Injection (JTD)
• Compression Ratio: 18.5:1
• Bore × Stroke: 82 mm × 90 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 3 / Euro 4

---

Suitable Models:

• Fiat Punto Mk2 / Mk2B (1.9 JTD, 1999-2010)
• Fiat Siena / Albea (1.9 JTD, 1997-2012)
• Fiat Palio (1.9 JTD, select markets)
• Fiat Strada Pickup (1.9 JTD variants)
• Fiat Idea (early 1.9 JTD models)
