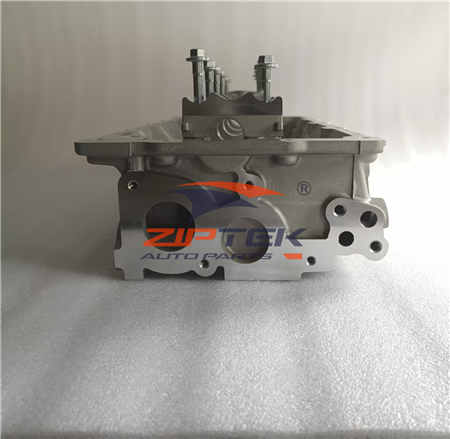

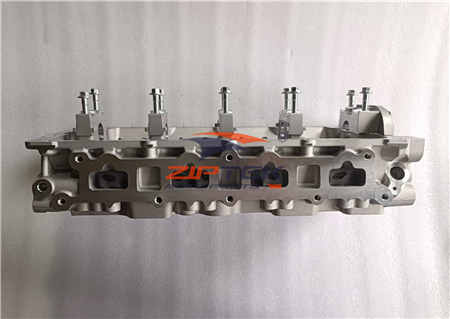

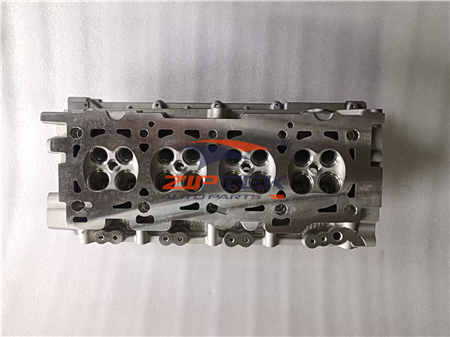

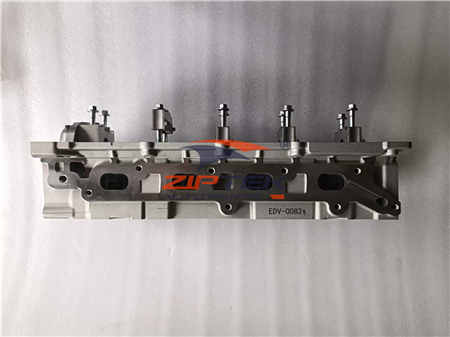

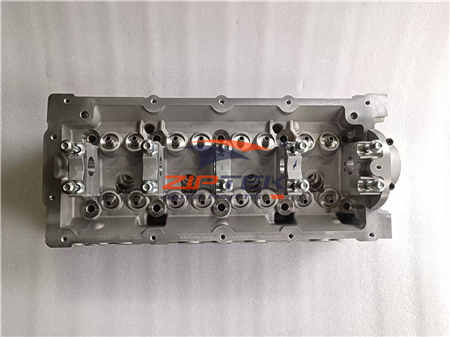

The cylinder head designed for Chery SQRD4G15B 1.5L naturally aspirated gasoline engines. This aluminum alloy cylinder head features DOHC 16-valve configuration with multi-point fuel injection and variable valve timing (VVT) compatibility, delivering reliable performance for Chery TIGGO 3X, A1, X1, Tiggo 2, and related compact vehicle platforms.

---

Quick Specifications:

• Engine Code: SQRD4G15B / D4G15B (Chery Acteco II Family)
• Displacement: 1.5 L (1,497 cc)
• Configuration: Inline-4 DOHC 16V, Naturally Aspirated
• Fuel System: Multi-Point Fuel Injection (MPI) + VVT
• Material: Aluminum Alloy
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Cooling: Water-cooled

---

Performance Data:

• Power Output: 78-80 kW (106-109 HP) @ 6,000 RPM
• Torque: 135-140 Nm @ 4,000 RPM
• Compression Ratio: 10.5:1 - 11.0:1
• Emission Standard: Euro 4 / Euro 5 / China V

---

Applications:

• Chery TIGGO 3X / Tiggo 3X (2016-present, 1.5L variants)
• Chery A1 / A13 / A13T (1.5L SQRD4G15B variants)
• Chery X1 / Tiggo 2 (1.5L variants)
• Chery Arrizo 3 / Arrizo 5 EX (select 1.5L applications)
• Chery E3 / QQ (1.5L variants)
• Aftermarket engine rebuild & replacement projects
