YANMAR B30 VIO 119515-11750 0.8L 3TNV76 Cylinder Head Assy
- Engine: 3TNV76
- Displacement: 0.8L
- OE NO.: 119515-11750
- AMC NO.: /
- Product description: Applications: Kubota BX Series
|
Engine Code |
3TNV76 |
|
Displacement |
0.8L |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

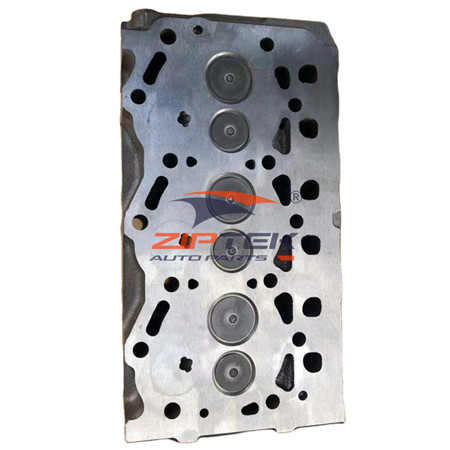

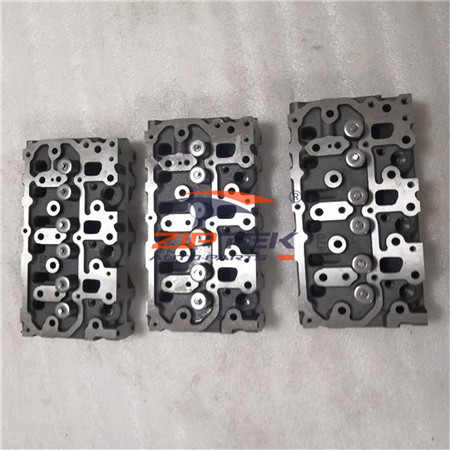

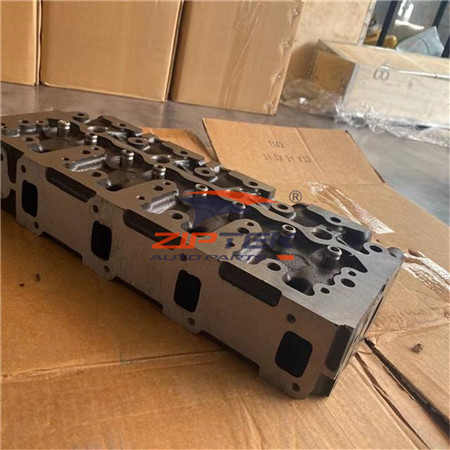

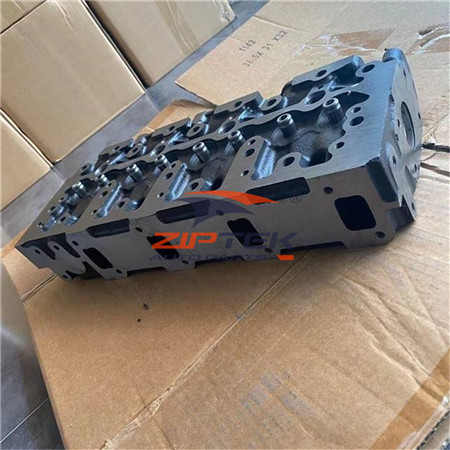

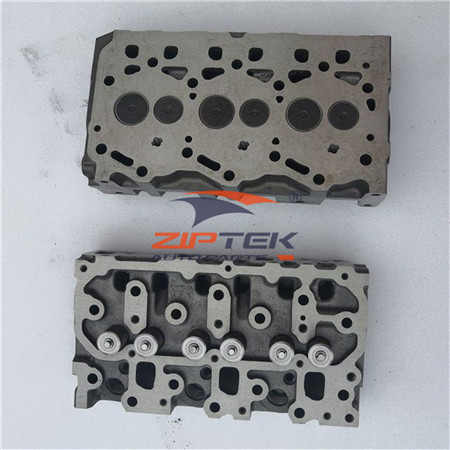

The cylinder head with reference number 119515-11750 is designed for Yanmar 3TNV76 0.8L naturally aspirated diesel engines. This compact cast iron cylinder head features SOHC 6-valve configuration, compatible with Yanmar B30, ViO series mini excavators and compact equipment platforms.
Quick Specifications:
-
Part Number: 119515-11750 / 119515-11751
-
Engine Code: 3TNV76 / 3TNV76-BRB / 3TNV76-UYN (Yanmar TNV Family)
-
Displacement: 0.8 L (799 cc)
-
Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) / Distributor Pump
-
Material: Cast Iron
-
Valve Configuration: SOHC 6-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 10-13 kW (13-17 HP) @ 2,800-3,000 RPM
-
Torque: 40-50 Nm @ 1,600-2,000 RPM
-
Compression Ratio: 23.0:1 - 24.0:1
-
Firing Order: 1-2-3
Applications:
-
Yanmar B30 / B30-2 / B30-3 Mini Excavators
-
Yanmar ViO17 / ViO20 / ViO27 Compact Excavators
-
Yanmar SV08 / SV13 Micro Excavators
-
Yanmar EF Series compact tractors
-
Industrial generator sets (3-8 kVA range)
-
Compact construction, landscaping & agricultural equipment
The cylinder head with reference number 119515-11750 is designed for Yanmar 3TNV76 0.8L naturally aspirated diesel engines. This compact cast iron cylinder head features SOHC 6-valve configuration, compatible with Yanmar B30, ViO series mini excavators and compact equipment platforms.
Quick Specifications:
-
Part Number: 119515-11750 / 119515-11751
-
Engine Code: 3TNV76 / 3TNV76-BRB / 3TNV76-UYN (Yanmar TNV Family)
-
Displacement: 0.8 L (799 cc)
-
Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) / Distributor Pump
-
Material: Cast Iron
-
Valve Configuration: SOHC 6-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 10-13 kW (13-17 HP) @ 2,800-3,000 RPM
-
Torque: 40-50 Nm @ 1,600-2,000 RPM
-
Compression Ratio: 23.0:1 - 24.0:1
-
Firing Order: 1-2-3
Applications:
-
Yanmar B30 / B30-2 / B30-3 Mini Excavators
-
Yanmar ViO17 / ViO20 / ViO27 Compact Excavators
-
Yanmar SV08 / SV13 Micro Excavators
-
Yanmar EF Series compact tractors
-
Industrial generator sets (3-8 kVA range)
-
Compact construction, landscaping & agricultural equipment
Quick Specifications:
- Part Number: 119515-11750 / 119515-11751
- Engine Code: 3TNV76 / 3TNV76-BRB / 3TNV76-UYN (Yanmar TNV Family)
- Displacement: 0.8 L (799 cc)
- Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
- Fuel System: Indirect Injection (IDI) / Distributor Pump
- Material: Cast Iron
- Valve Configuration: SOHC 6-Valve (2 valves per cylinder)
Performance Data:
- Power Output: 10-13 kW (13-17 HP) @ 2,800-3,000 RPM
- Torque: 40-50 Nm @ 1,600-2,000 RPM
- Compression Ratio: 23.0:1 - 24.0:1
- Firing Order: 1-2-3
Applications:
- Yanmar B30 / B30-2 / B30-3 Mini Excavators
- Yanmar ViO17 / ViO20 / ViO27 Compact Excavators
- Yanmar SV08 / SV13 Micro Excavators
- Yanmar EF Series compact tractors
- Industrial generator sets (3-8 kVA range)
- Compact construction, landscaping & agricultural equipment
