Audi VW Skoda
VW Jetta Caddy 038103351B 038103373E 1.9TDI AHF AGP AGR ASY Cylinder Head
- Engine: AHF AGP AGR ASY
- Displacement: 1.9D
- OE No.: 038103351B
- OE No.:038103373E
- Product description: Applications: VW Jetta VW Caddy VW MK
|
Engine Code |
AHF AGP AGR ASY |
|
Displacement |
1.9D |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

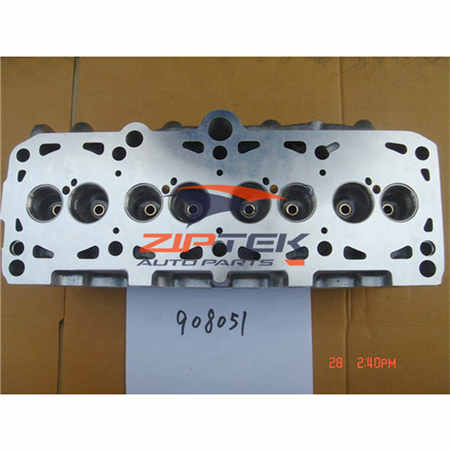

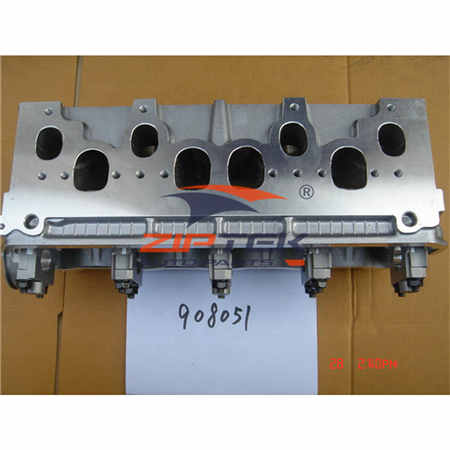

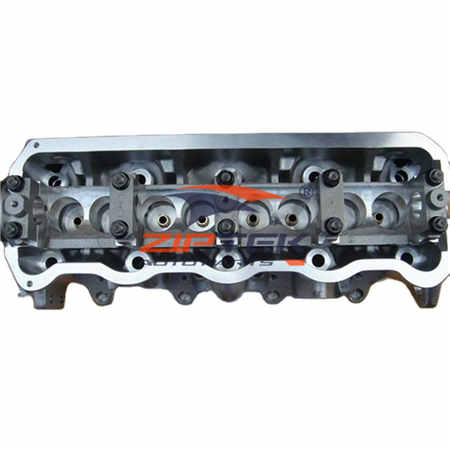

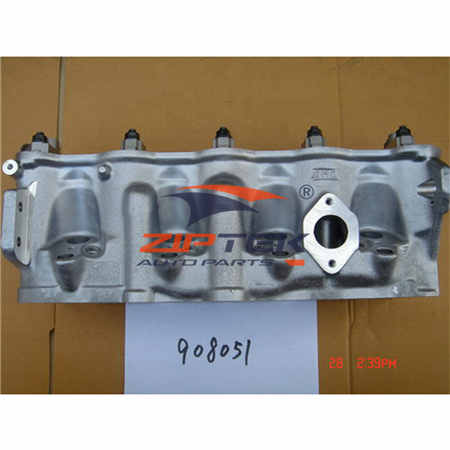

The cylinder head with reference numbers 028103351M and 908055 is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code 1Y. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Caddy, Gol, Golf, and related classic platforms.
Quick Specifications:
-
Part Numbers: 028103351M / 908055 (VW OEM format)
-
Engine Code: 1Y (EA827 diesel family)
-
Displacement: 1.9 L (1,896 cc)
-
Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) with Distributor Pump
-
Material: Aluminum Alloy
-
Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 47-50 kW (64-68 HP) @ 4,000-4,200 RPM
-
Torque: 125-135 Nm @ 2,200-2,600 RPM
-
Compression Ratio: 23.0:1
-
Emission Standard: Pre-Euro / Euro 1
Applications:
-
VW Caddy MK2 / Typ 9K (1.9D variants)
-
VW Gol / Parati / Saveiro (Brazilian market, 1.9D variants)
-
VW Golf MK2 / MK3 (1.9D variants)
-
VW Transporter T4 (early 1.9D applications)
-
SEAT Ibiza / Córdoba (early 1.9D variants)
-
Classic VW restoration & aftermarket projects
The cylinder head with reference numbers 028103351M and 908055 is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code 1Y. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Caddy, Gol, Golf, and related classic platforms.
Quick Specifications:
-
Part Numbers: 028103351M / 908055 (VW OEM format)
-
Engine Code: 1Y (EA827 diesel family)
-
Displacement: 1.9 L (1,896 cc)
-
Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI) with Distributor Pump
-
Material: Aluminum Alloy
-
Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 47-50 kW (64-68 HP) @ 4,000-4,200 RPM
-
Torque: 125-135 Nm @ 2,200-2,600 RPM
-
Compression Ratio: 23.0:1
-
Emission Standard: Pre-Euro / Euro 1
Applications:
-
VW Caddy MK2 / Typ 9K (1.9D variants)
-
VW Gol / Parati / Saveiro (Brazilian market, 1.9D variants)
-
VW Golf MK2 / MK3 (1.9D variants)
-
VW Transporter T4 (early 1.9D applications)
-
SEAT Ibiza / Córdoba (early 1.9D variants)
-
Classic VW restoration & aftermarket projects
The cylinder head with reference numbers 028103351M and 908055 is designed for Volkswagen Group 1.9L naturally aspirated diesel engines with engine code 1Y. This aluminum alloy cylinder head features SOHC 8-valve configuration with indirect injection compatibility, delivering reliable performance for VW Caddy, Gol, Golf, and related classic platforms.
Quick Specifications:
- Part Numbers: 028103351M / 908055 (VW OEM format)
- Engine Code: 1Y (EA827 diesel family)
- Displacement: 1.9 L (1,896 cc)
- Configuration: Inline-4 SOHC 8V, Naturally Aspirated Diesel
- Fuel System: Indirect Injection (IDI) with Distributor Pump
- Material: Aluminum Alloy
- Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
Performance Data:
- Power Output: 47-50 kW (64-68 HP) @ 4,000-4,200 RPM
- Torque: 125-135 Nm @ 2,200-2,600 RPM
- Compression Ratio: 23.0:1
- Emission Standard: Pre-Euro / Euro 1
Applications:
- VW Caddy MK2 / Typ 9K (1.9D variants)
- VW Gol / Parati / Saveiro (Brazilian market, 1.9D variants)
- VW Golf MK2 / MK3 (1.9D variants)
- VW Transporter T4 (early 1.9D applications)
- SEAT Ibiza / Córdoba (early 1.9D variants)
- Classic VW restoration & aftermarket projects
