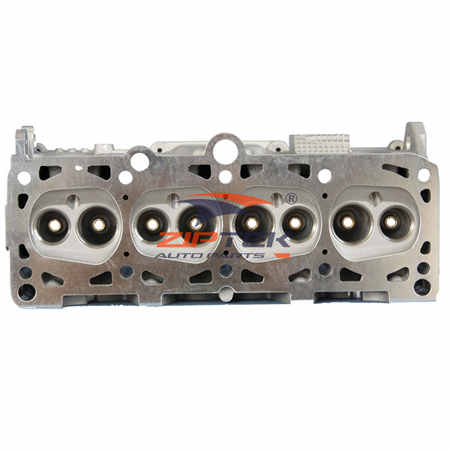

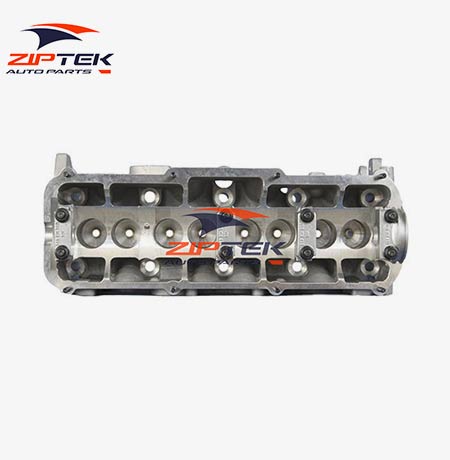

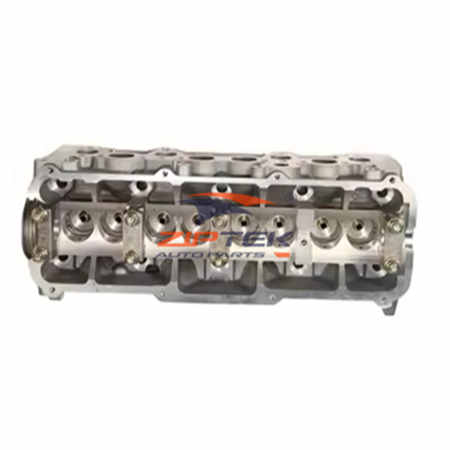

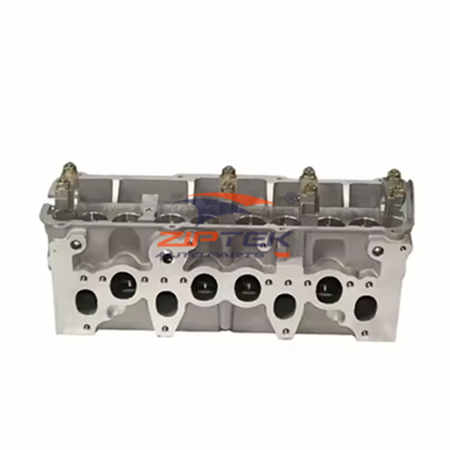

The cylinder head with reference numbers 026103373AQ, 026103353Q, and 026103353AQ is designed for Volkswagen Group JV 1.6L/1.8L gasoline engines. This aluminum alloy cylinder head features SOHC 8-valve configuration with carburetor or fuel injection compatibility, delivering reliable performance for VW Santana, Jetta, Passat, and related classic platforms.

---

Quick Specifications:

• Part Numbers: 026103373AQ / 026103353Q / 026103353AQ (VW OEM format)
• Engine Codes: JV / JX / RP / 2P (VW EA827 family)
• Displacement: 1.6 L (1,595 cc) / 1.8 L (1,781 cc)
• Configuration: Inline-4 SOHC 8V, Naturally Aspirated
• Fuel System: Carburetor / Multi-Point Fuel Injection (variant-dependent)
• Material: Aluminum Alloy
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)

---

Performance Data:

• Power Output: 55-66 kW (75-90 HP) @ 5,200-5,500 RPM
• Torque: 125-145 Nm @ 3,000-3,500 RPM
• Compression Ratio: 9.0:1 - 10.0:1
• Emission Standard: Euro 1 / Pre-Euro

---

Applications:

• VW Santana / Passat B2 (1981-1995, 1.6/1.8L variants)
• VW Jetta MK2 / Vento (1984-1992, 1.6/1.8L variants)
• VW Golf MK2 (1.6/1.8L gasoline variants)
• VW Transporter T3 (select 1.8L applications)
• SEAT Toledo / Ibiza (early JV-sourced variants)
• Classic VW restoration & aftermarket projects
