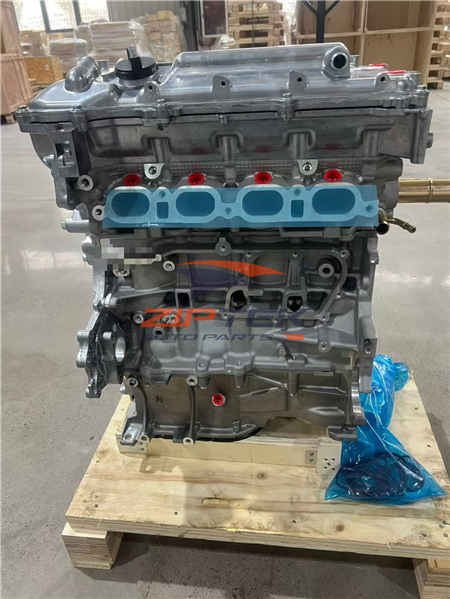

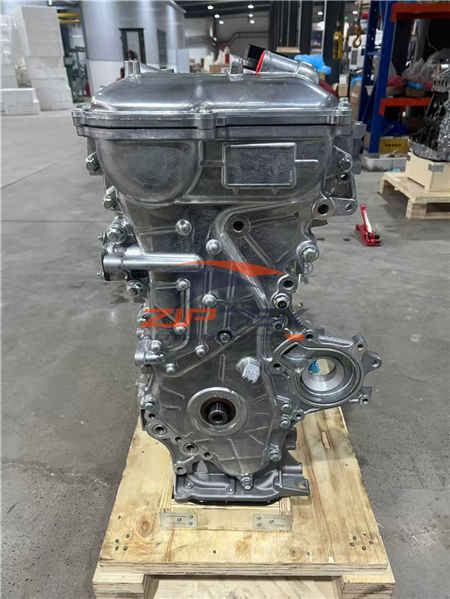

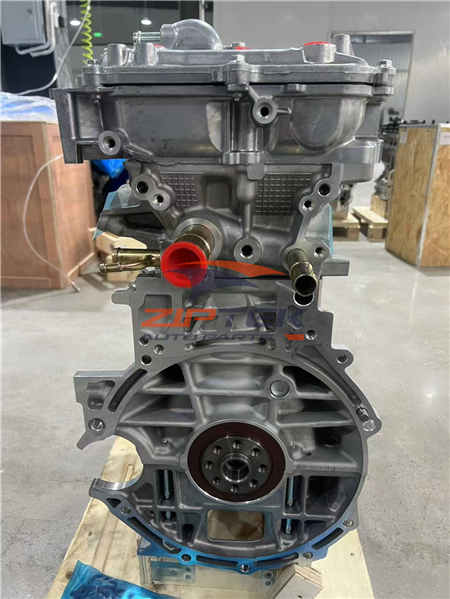

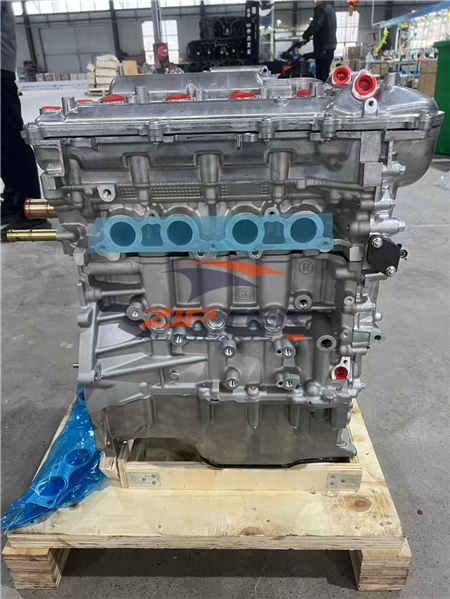

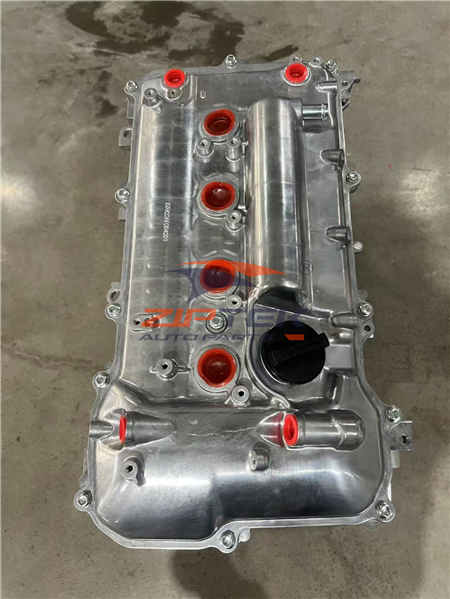

The Toyota 1ZR-FE and 2ZR-FE are modern gasoline engines from Toyota's ZR engine family, designed for compact cars and entry-level sedans. These inline-four cylinder engines feature Dual VVT-i (Variable Valve Timing-intelligent) on both intake and exhaust camshafts, delivering excellent fuel efficiency, smooth power delivery, and reliable performance for urban commuting and daily driving. The 2ZR-FE 1.8L variant is widely used in Toyota Corolla, Allion, Auris, and related platforms globally.

---

Technical Specifications:

• Engine Code: 1ZR-FE (1.6L) / 2ZR-FE (1.8L) / 2ZR-FXE (1.8L Hybrid)
• Engine Type: Inline-4, 4-stroke, water-cooled, naturally aspirated gasoline
• Displacement: 1.6 L (1,598 cc) / 1.8 L (1,797-1,798 cc)
• Bore × Stroke: 80.5 mm × 78.5 mm (1.6L) / 80.5 mm × 88.3 mm (1.8L)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Valve Train: Chain-driven DOHC with Dual VVT-i
• Fuel System: Multi-Point Fuel Injection (MPI) / Atkinson Cycle (Hybrid variants)
• Compression Ratio: 10.7:1 (1ZR-FE) / 10.0:1 (2ZR-FE) / 13.0:1 (2ZR-FXE Hybrid)
• Firing Order: 1-3-4-2

---

Performance Data:

• Maximum Power Output:
  • 1ZR-FE: 90-97 kW (122-132 HP) @ 6,000 RPM
  • 2ZR-FE: 103-106 kW (140-144 HP) @ 6,400 RPM
  • 2ZR-FXE (Hybrid): 73 kW (99 HP) @ 5,200 RPM (engine only)
• Maximum Torque:
  • 1ZR-FE: 154-160 Nm @ 4,000 RPM
  • 2ZR-FE: 173-176 Nm @ 4,000 RPM
  • 2ZR-FXE (Hybrid): 142 Nm @ 4,000 RPM (engine only)

---

Key Features:

• Dual VVT-i Technology: Variable valve timing on both intake and exhaust camshafts optimizes valve overlap for improved fuel efficiency, power output, and emissions control
• Lightweight Construction: Aluminum alloy cylinder block and cylinder head reduce overall engine weight and improve heat dissipation
• Chain-Driven Timing: Maintenance-free timing chain design eliminates the need for periodic belt replacement
• Acoustic Control Induction System (ACIS): Optimizes intake manifold length for enhanced low-end torque and high-RPM power
• Electronic Throttle Control: Drive-by-wire system enables precise throttle response and integration with vehicle stability systems
• Emission Compliance: Meets Euro 4 / Euro 5 / Euro 6 / SULEV standards with advanced catalytic converter and EGR systems
• Hybrid Compatibility: 2ZR-FXE variant features Atkinson cycle operation for maximum thermal efficiency in hybrid applications

---

Applications:

• Toyota Corolla: E140 / E150 / E170 / E210 generations (global markets)
• Toyota Allion / Premio: T260 series (Asian markets, especially China and Japan)
• Toyota Auris / Corolla Hatchback: European and global markets
• Toyota Matrix / Pontiac Vibe: North American compact hatchback variants
• Toyota Levin: Chinese market sedan variant
• Toyota Corolla Cross: Select markets with 2ZR-FE powertrain
• Toyota Sienta / Verso: Compact MPV applications (select markets)
