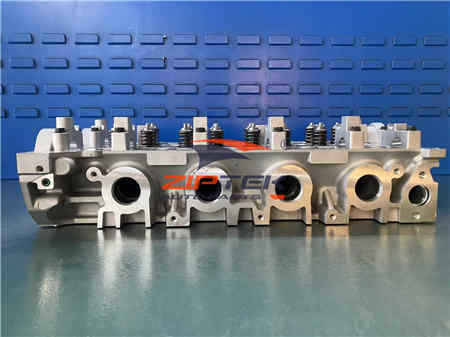

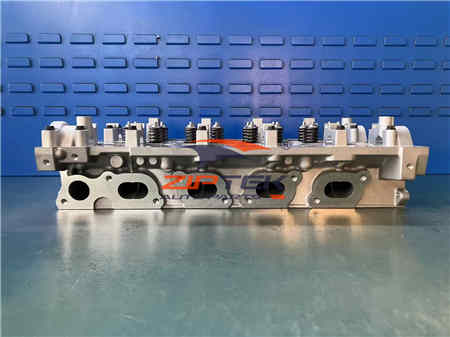

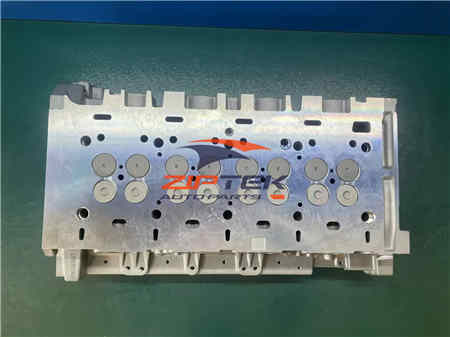

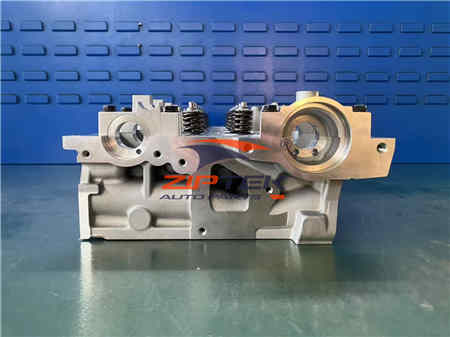

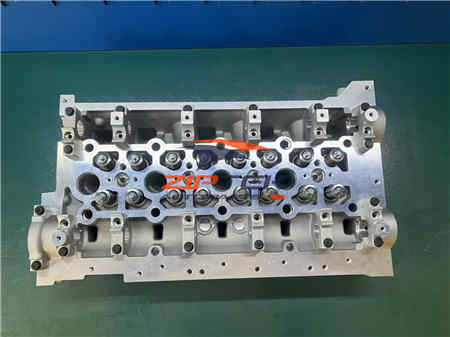

The cylinder head with reference numbers 908798 and 908898 is designed for Renault G9U 2.5L dCi diesel engines. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Renault Master, Opel Movano, Nissan Interstar, and Vauxhall Movano models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for light commercial vehicle and passenger van applications.

---

Technical Features:

• Reference Numbers: 908798 / 908898
• Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: G9U 2.5L dCi Diesel Engine

---

Engine Parameters:

• Engine Code: G9U-700 / G9U-720 / G9U-730 (2.5 dCi variants)
• Displacement: 2.5 L (2,463 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Power Output: 74-107 kW (100-145 HP) @ 3500 RPM
• Torque: 280-320 Nm @ 1500-2500 RPM
• Fuel System: Common Rail Direct Injection (dCi) + VGT
• Compression Ratio: 18.0:1
• Bore × Stroke: 87 mm × 103.5 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 3 / Euro 4 / Euro 5

---

Suitable Models:

• Renault Master II / III (2000+, 2.5 dCi variants)
• Opel Movano A / B (2000+)
• Vauxhall Movano (UK market)
• Nissan Interstar (2002-2010)
• Renault Trafic (select 2.5 dCi applications)
• Commercial vans & chassis cabs
