Renault Clio Dacia Logan 8200308854 1.2L D4F Cylinder Head
- Engine: D4F
- Displacement: 1.2L
- OE NO.: 8200308854
- OE NO.: /
- Product description: Applications: * 2000–2014 Renault Twingo * 2001–2019 Renault Clio * 2006–2021 Renault Symbol * 2004–2012 Renault Modus/Grand Modus * 2005–2011 Proton Savvy * 2009–2016 Dacia Logan * 2009–2016
|
Engine Code |
D4F |
|
Displacement |
1.2L |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

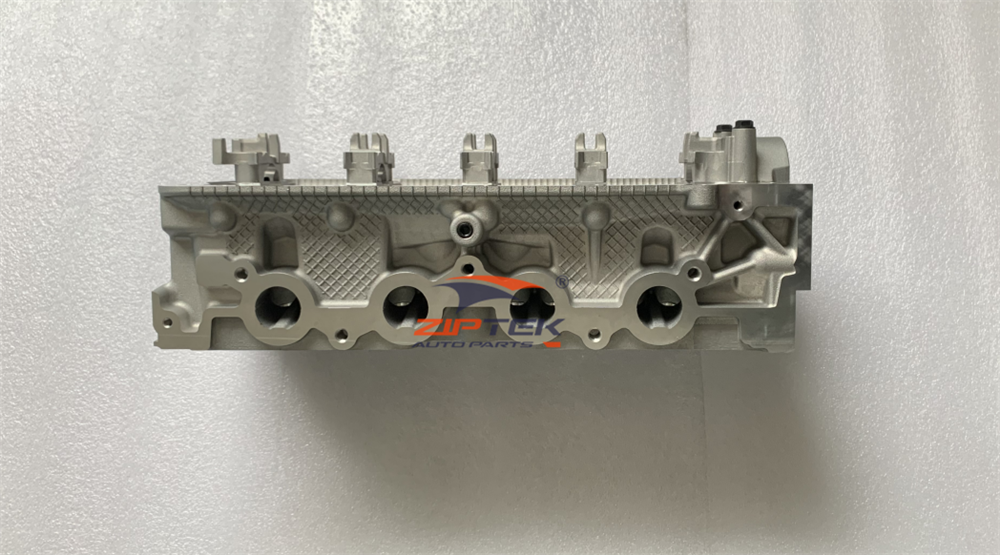

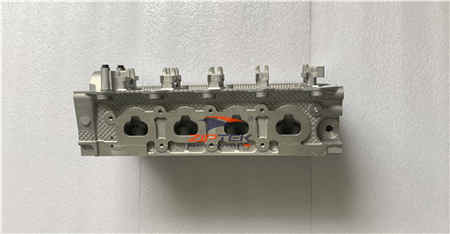

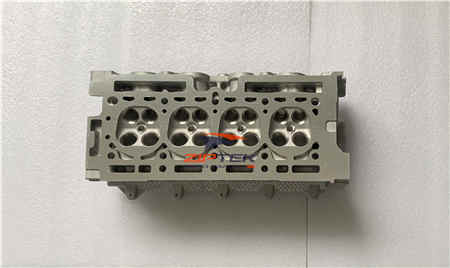

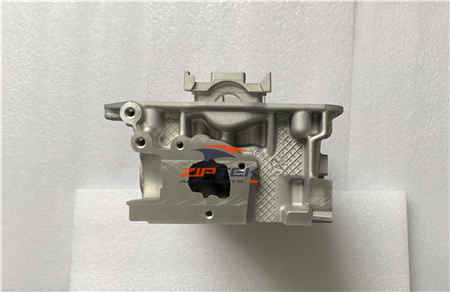

The OEM cylinder head 8200308854 is a complete cylinder head assembly designed for Renault D4F 1.2L 16V engines. This critical engine component features DOHC 16-valve configuration with aluminum alloy construction, compatible with Renault Clio, Twingo, Modus, Dacia Logan, and Kangoo models. The cylinder head is engineered to deliver efficient urban performance and reliable operation for these popular compact vehicles.
Technical Features:
- Part Number: 8200308854 (Cross-ref: 7701478273)
- Type: Complete Cylinder Head Assembly
- Valve Configuration: DOHC 16-Valve
- Material: Aluminum Alloy
- Application: D4F 1.2L Engine
Engine Parameters:
- Engine Code: D4F (D4F-722, D4F-740, D4F-784 variants)
- Displacement: 1.2 L (1,149 cc)
- Configuration: Inline-4 DOHC 16V
- Power Output: 55-60 kW (75-80 HP) @ 5500 RPM
- Torque: 105-108 Nm @ 4250 RPM
- Fuel System: Multi-Point Fuel Injection (MPFI)
- Compression Ratio: 9.8:1
- Bore × Stroke: 69 mm × 76.8 mm
- Firing Order: 1-3-4-2
- Spark Plug Gap: 0.90 ± 0.05 mm
Suitable Models:
- Renault Clio II / III / IV (2001-2016)
- Renault Twingo I / II
- Renault Modus
- Renault Kangoo (2001+)
- Renault Symbol
- Dacia Logan (2009-2016)
- Dacia Sandero (2009-2016)
- Proton Savvy (select markets)
