Peugeot Citroen
Peugeot 5008 Citroen Berlingo 9684487210 AV6Q6C032AA BH2 9H05 Cylinder Head
- Engine:BH2 9H05
- Displacement: 1.6
- OE NO.:9684487210
- OE NO.: AV6Q6C032AA
- Product description: Applications: * Citroen C3 II (A51) in 2009 – 2014; * Citroen C3 Picasso I (A58) in 2011 – 2015; * Citroen DS3 I (A55) in 2010 – 2015; * Citroen C-Elysee I (R31) in 2012 – 2016; * Citroen C4 II
|
Engine Code |
BH2 9H05 |
|
Displacement |
1.6 |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

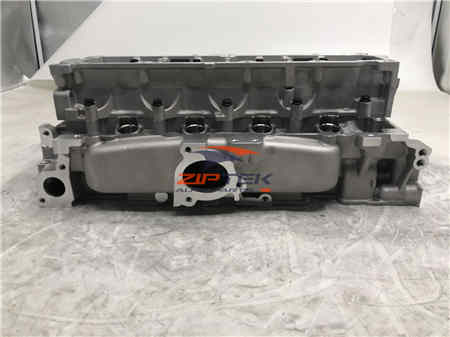

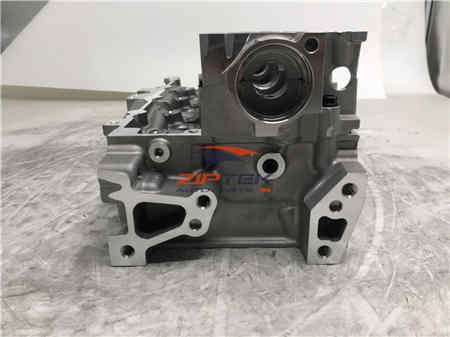

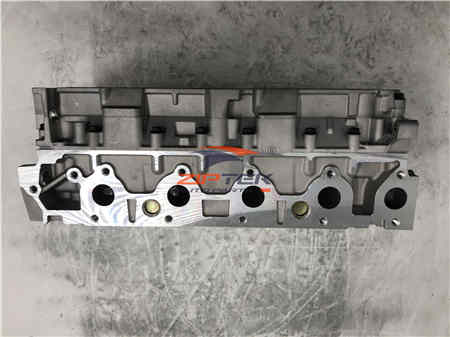

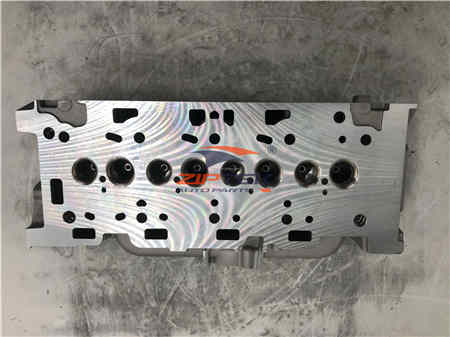

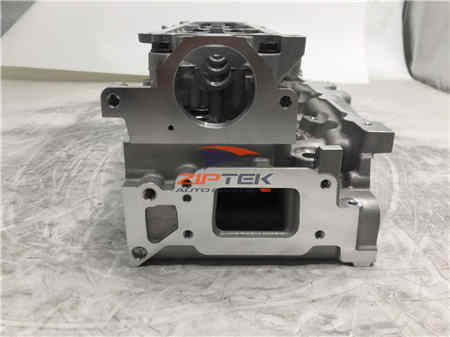

The cylinder head with reference numbers 9684487210 and AV6Q6C032AA is designed for PSA DV5/DV6 1.6L HDi diesel engines with engine codes BH2 and 9H05 variants. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Peugeot 5008, 308, Partner, and Citroen Berlingo, C4 Picasso models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for compact MPV and light commercial vehicle applications.
Technical Features:
-
Reference Numbers: 9684487210 / AV6Q6C032AA
-
Type: Cylinder Head (Bare)
-
Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
-
Material: Aluminum Alloy
-
Application: DV5/DV6 1.6L HDi Diesel Engine (BH2 / 9H05 variants)
Engine Parameters:
-
Engine Code: DV5TED4 / DV6TED4 / DV6C (BH2 / 9H05 variants)
-
Displacement: 1.6 L (1,560 cc)
-
Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
-
Power Output: 66-88 kW (90-120 HP) @ 3750-4000 RPM
-
Torque: 215-300 Nm @ 1750-2500 RPM
-
Fuel System: Common Rail Direct Injection (HDi) + VGT
-
Compression Ratio: 16.0:1
-
Bore × Stroke: 75 mm × 88.3 mm
-
Firing Order: 1-3-4-2
-
Emission Standard: Euro 4 / Euro 5 / Euro 6
Suitable Models:
-
Peugeot 5008 I (2009-2017, 1.6 HDi variants)
-
Peugeot 308 / 308 SW (2007-2013)
-
Peugeot Partner / Partner Tepee
-
Citroen Berlingo / Berlingo First
-
Citroen C4 / C4 Picasso (1.6 HDi variants)
-
Ford C-MAX / Focus (DV6-sourced variants, AV6Q prefix)
The cylinder head with reference numbers 9684487210 and AV6Q6C032AA is designed for PSA DV5/DV6 1.6L HDi diesel engines with engine codes BH2 and 9H05 variants. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Peugeot 5008, 308, Partner, and Citroen Berlingo, C4 Picasso models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for compact MPV and light commercial vehicle applications.
Technical Features:
- Reference Numbers: 9684487210 / AV6Q6C032AA
- Type: Cylinder Head (Bare)
- Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
- Material: Aluminum Alloy
- Application: DV5/DV6 1.6L HDi Diesel Engine (BH2 / 9H05 variants)
Engine Parameters:
- Engine Code: DV5TED4 / DV6TED4 / DV6C (BH2 / 9H05 variants)
- Displacement: 1.6 L (1,560 cc)
- Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
- Power Output: 66-88 kW (90-120 HP) @ 3750-4000 RPM
- Torque: 215-300 Nm @ 1750-2500 RPM
- Fuel System: Common Rail Direct Injection (HDi) + VGT
- Compression Ratio: 16.0:1
- Bore × Stroke: 75 mm × 88.3 mm
- Firing Order: 1-3-4-2
- Emission Standard: Euro 4 / Euro 5 / Euro 6
Suitable Models:
- Peugeot 5008 I (2009-2017, 1.6 HDi variants)
- Peugeot 308 / 308 SW (2007-2013)
- Peugeot Partner / Partner Tepee
- Citroen Berlingo / Berlingo First
- Citroen C4 / C4 Picasso (1.6 HDi variants)
- Ford C-MAX / Focus (DV6-sourced variants, AV6Q prefix)
