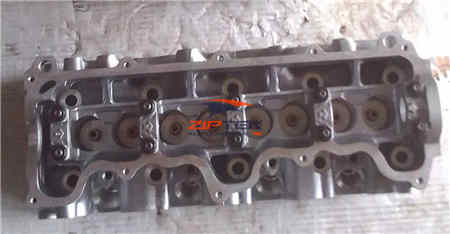

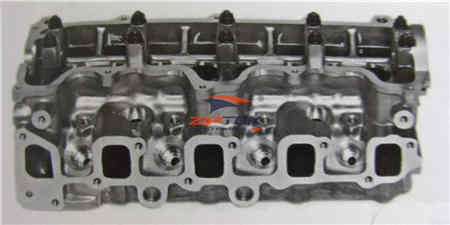

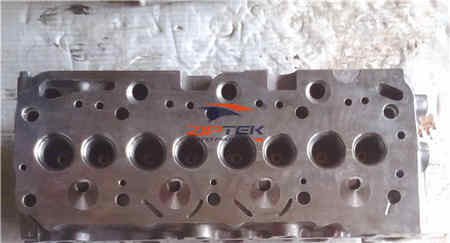

The cylinder head with reference numbers 908552 and 5607047 is designed for Isuzu-GM 4EC1 / X15TD 1.5L turbo diesel engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Opel Corsa, Isuzu Gemini, Chevrolet Corsa, and Vectra models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for compact car and light commercial vehicle applications.

---

Technical Features:

• Reference Numbers: 908552 / 5607047
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: 4EC1 / T4EC1 / X15TD 1.5L Turbo Diesel Engine

---

Engine Parameters:

• Engine Code: 4EC1 / T4EC1 / X15TD (Isuzu-GM Diesel Family)
• Displacement: 1.5 L (1,496 cc)
• Configuration: Inline-4 SOHC, Turbocharged Diesel
• Power Output: 49-55 kW (67-75 HP) @ 4600 RPM
• Torque: 132-145 Nm @ 2000-2500 RPM
• Fuel System: Indirect Injection (IDI) / Distributor Pump
• Compression Ratio: 22.5:1 - 23.0:1
• Bore × Stroke: 79 mm × 76 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 1 / Euro 2

---

Suitable Models:

• Opel Corsa A / B (1.5 TD variants, 1987-2000)
• Isuzu Gemini / Isuzu Piazza (diesel variants)
• Chevrolet Corsa / Chevrolet Chevy (Latin American markets)
• Opel Vectra A (1.5 TD, select markets)
• Bedford Rascal / Suzuki Carry (4EC1-sourced variants)
• Classic restoration & diesel conversion projects
