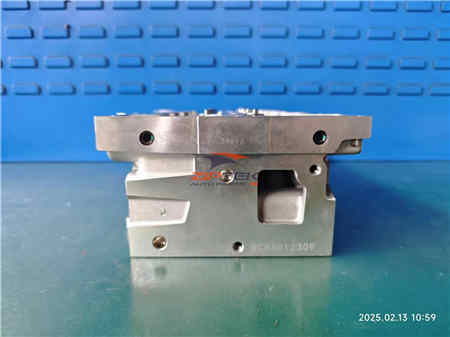

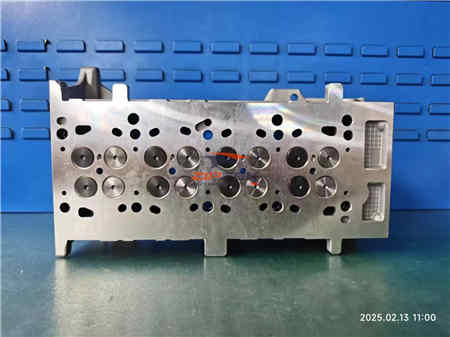

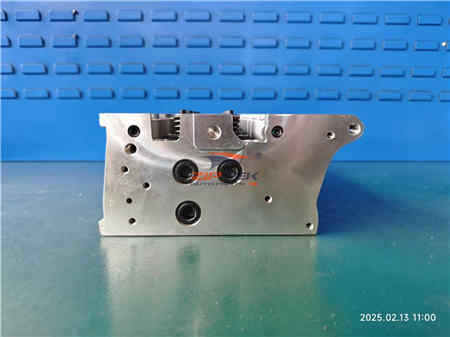

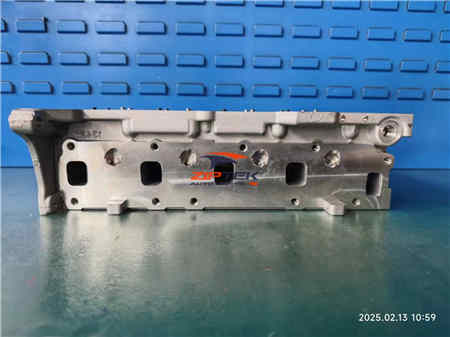

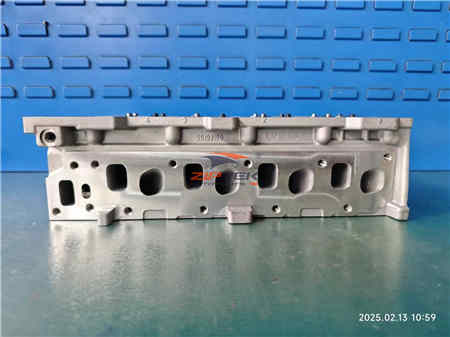

The cylinder head with reference numbers 908558 and 908658 is designed for GM-Fiat 1.3 CDTI diesel engines with engine codes A13DTE and Z13DTE. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Opel Astra, Combo, Corsa, Meriva, and Fiat Panda, Punto models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for compact car and light commercial vehicle applications.

---

Technical Features:

• Reference Numbers: 908558 / 908658
• Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: A13DTE / Z13DTE 1.3L CDTI Diesel Engine

---

Engine Parameters:

• Engine Code: A13DTE / Z13DTE / Z13DTJ (GM-Fiat Small Diesel Family)
• Displacement: 1.3 L (1,248 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Power Output: 55-70 kW (75-95 HP) @ 4000 RPM
• Torque: 190-210 Nm @ 1750-2500 RPM
• Fuel System: Common Rail Direct Injection (CDTI) + VGT
• Compression Ratio: 17.6:1
• Bore × Stroke: 69.6 mm × 82 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 4 / Euro 5

---

Suitable Models:

• Opel Astra H / J (1.3 CDTI variants, 2004-2015)
• Opel Combo C / D (2001+, 1.3 CDTI variants)
• Opel Corsa C / D / E (1.3 CDTI variants)
• Opel Meriva A / B (1.3 CDTI variants)
• Fiat Panda / Punto / Grande Punto (1.3 MultiJet variants)
• Fiat Doblo / Idea (1.3 MultiJet variants)
• Suzuki Swift / Ignis (1.3 DDiS variants)
• Ford Fiesta / Fusion (1.3 TDCi variants, shared platform)
