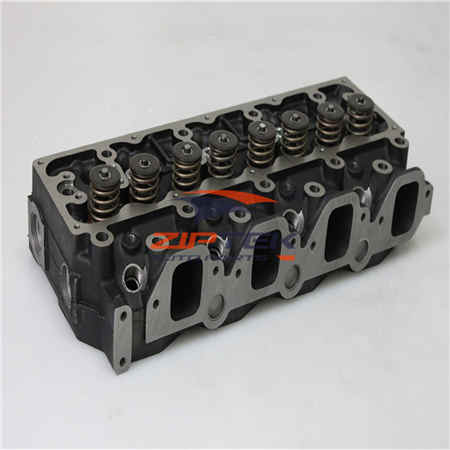

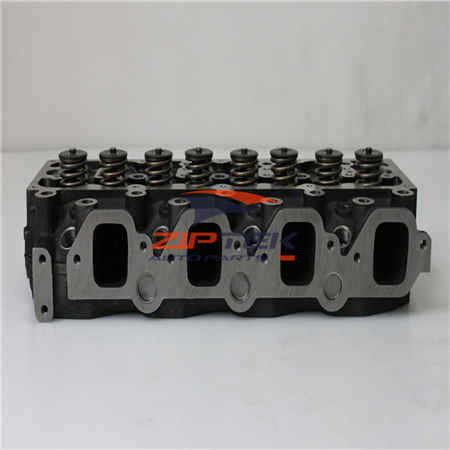

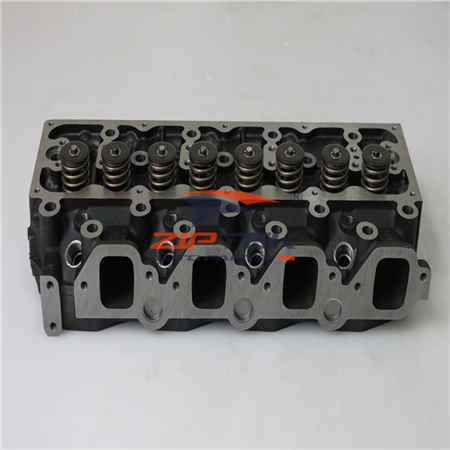

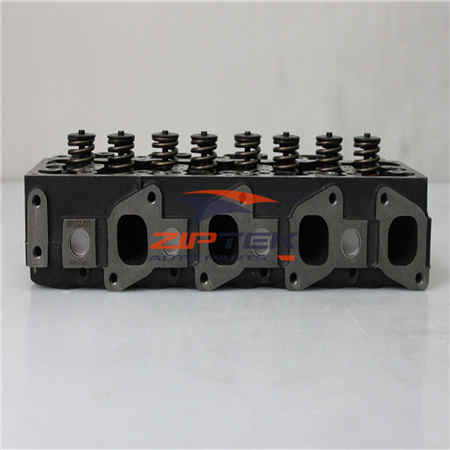

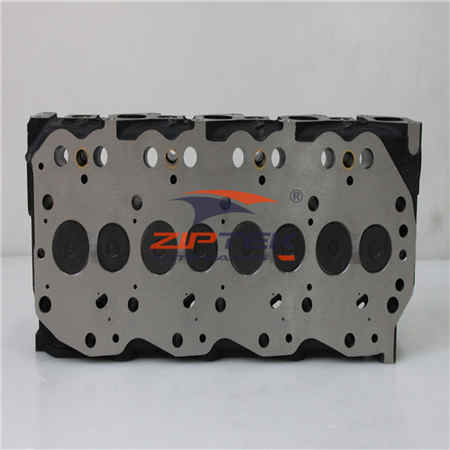

The cylinder head with reference number 11039-3S900 is designed for Nissan TD25 2.5L naturally aspirated diesel engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Nissan Navara, Cedric, Patrol, Urvan, and commercial vehicle platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for pickup truck, sedan, and light commercial vehicle applications.

---

Technical Features:

• Reference Number: 11039-3S900
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: TD25 2.5L Naturally Aspirated Diesel Engine

---

Engine Parameters:

• Engine Code: TD25 / TD25T / TD25Ti (Nissan Diesel Family)
• Displacement: 2.5 L (2,494 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated / Turbo Diesel
• Power Output:
  • NA: 55-60 kW (75-80 HP) @ 4000 RPM
  • Turbo: 70-77 kW (95-105 HP) @ 4000 RPM
• Torque:
  • NA: 160-175 Nm @ 2000-2400 RPM
  • Turbo: 205-225 Nm @ 2000-2400 RPM
• Fuel System: Indirect Injection (IDI) / Distributor Pump
• Compression Ratio: 22.0:1 - 23.0:1
• Bore × Stroke: 91.1 mm × 96 mm
• Firing Order: 1-3-4-2
• Emission Standard: Pre-Euro / Euro 1 / Local Standards

---

Suitable Models:

• Nissan Navara D21 / D22 (1986-2004, TD25 variants)
• Nissan Cedric Y30 / Y31 (diesel taxi/commercial variants)
• Nissan Patrol GQ / GU (TD25-powered variants)
• Nissan Urvan / E24 Van (TD25 variants)
• Nissan Terrano / Pathfinder (select markets)
• Nissan Cabstar / Atlas (light truck variants)
