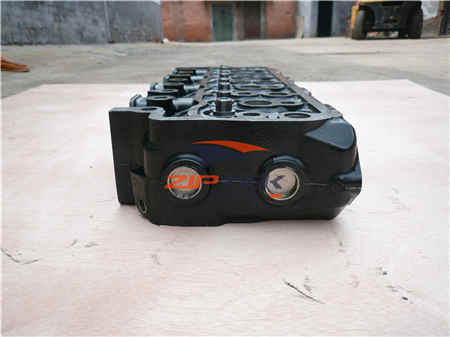

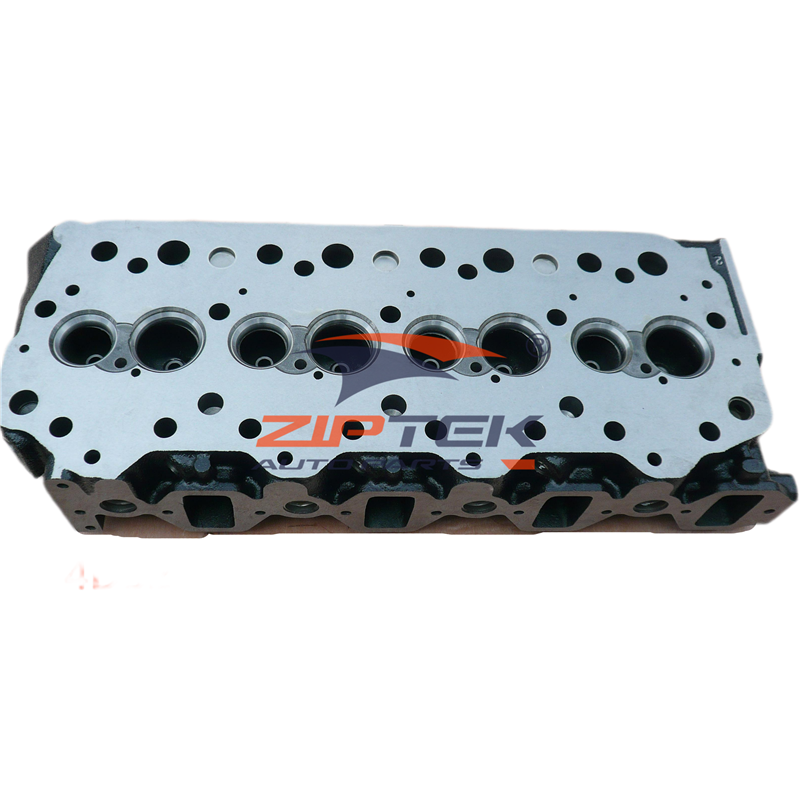

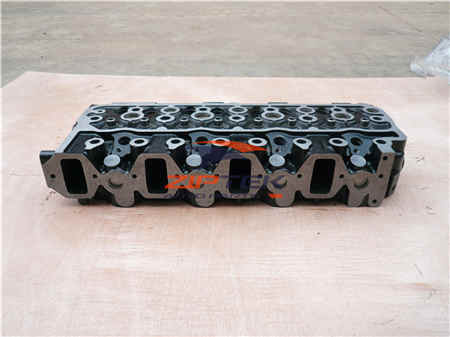

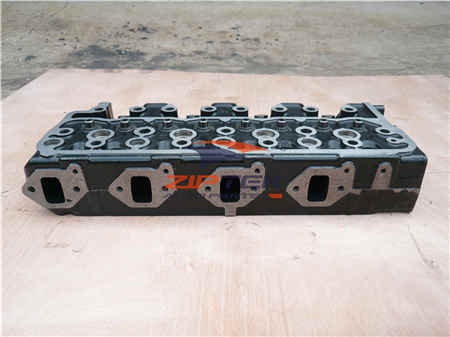

The cylinder head with reference number ME997800 is designed for Mitsubishi 4D32 3.0L-3.2L diesel engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Mitsubishi Fuso Canter, Pajero, Delica, L300, and light commercial vehicle platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for pickup truck, SUV, and light commercial vehicle applications.

---

Technical Features:

• Reference Number: ME997800
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: 4D32 / 4D32-T / 4D32-TI 3.0L-3.2L Diesel Engine

---

Engine Parameters:

• Engine Code: 4D32 / 4D32-T / 4D32-TI (Mitsubishi Diesel Family)
• Displacement: 3.0 L - 3.2 L (2,977 - 3,168 cc, variant-dependent)
• Configuration: Inline-4 SOHC, Naturally Aspirated / Turbocharged Diesel
• Power Output:
  • NA: 60-70 kW (80-95 HP) @ 3500 RPM
  • Turbo: 77-85 kW (105-115 HP) @ 3500 RPM
• Torque:
  • NA: 195-215 Nm @ 2000 RPM
  • Turbo: 235-255 Nm @ 2000 RPM
• Fuel System: Indirect Injection (IDI) / Distributor Pump
• Compression Ratio: 21.0:1 - 23.0:1
• Bore × Stroke: 91.1 mm × 112 mm (3.0L) / 95 mm × 112 mm (3.2L)
• Firing Order: 1-3-4-2
• Emission Standard: Pre-Euro / Euro 1 / Local Standards

---

Suitable Models:

• Mitsubishi Fuso Canter (FE/FG series, 4D32 variants)
• Mitsubishi Pajero / Montero (First/Second generation, diesel variants)
• Mitsubishi Delica / L300 / Express (4D32-powered variants)
• Mitsubishi L200 / Triton (early diesel variants)
• Mitsubishi Rosa Minibus (select 4D32 applications)
• Aftermarket conversions & commercial utility applications
