Kubota
Kubota B2100DT B21 16027-03043 1.0L D1005 Cylinder Head
- Engine: D1005
- Displacement: 1.0L
- OE NO.: 16027-03043
- AMC NO.: /
- Product description: Applications: Kubota B2100DT / B2100HSD Compact Tractors Kubota B21 Series (B2150, B2160 variants) Kubota ZD Series zero-turn mowers (select applications) Industrial generator sets (8-15 kVA rang
|
Engine Code |
D1005 |
|
Displacement |
1.0L |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |

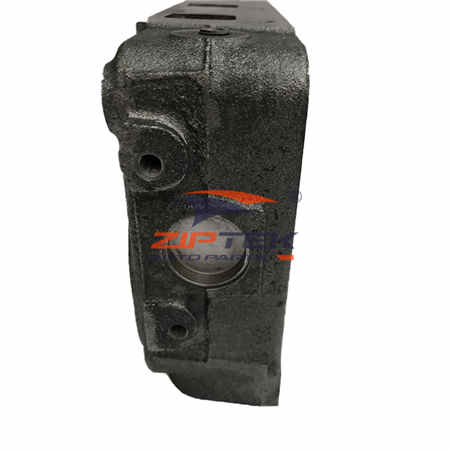

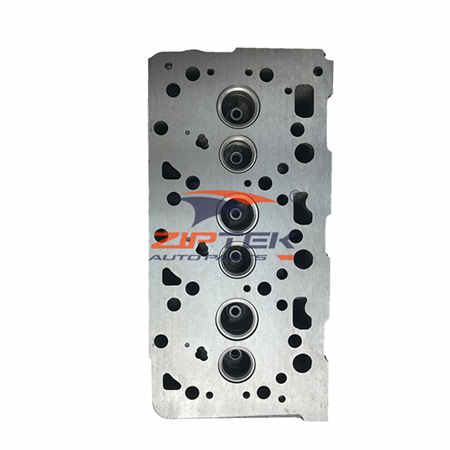

The cylinder head with reference number 16027-03043 is designed for Kubota D1005 1.0L naturally aspirated diesel engines. This compact cast iron cylinder head features SOHC 6-valve configuration, compatible with Kubota B2100DT, B21 series tractors and compact equipment platforms.
Quick Specifications:
-
Part Number: 16027-03043 / 16027-03044
-
Engine Code: D1005 / D1005-E / D1005-E3B
-
Displacement: 1.0 L (1,001 cc)
-
Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI)
-
Material: Cast Iron
-
Valve Configuration: SOHC 6-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 16-18 kW (21-24 HP) @ 3,000 RPM
-
Torque: 60-68 Nm @ 1,800-2,200 RPM
-
Compression Ratio: 23.0:1 - 24.0:1
-
Firing Order: 1-2-3
Applications:
-
Kubota B2100DT / B2100HSD Compact Tractors
-
Kubota B21 Series (B2150, B2160 variants)
-
Kubota ZD Series zero-turn mowers (select applications)
-
Industrial generator sets (8-15 kVA range)
-
Compact agricultural & landscaping equipment
-
Marine auxiliary and stationary power units
The cylinder head with reference number 16027-03043 is designed for Kubota D1005 1.0L naturally aspirated diesel engines. This compact cast iron cylinder head features SOHC 6-valve configuration, compatible with Kubota B2100DT, B21 series tractors and compact equipment platforms.
Quick Specifications:
-
Part Number: 16027-03043 / 16027-03044
-
Engine Code: D1005 / D1005-E / D1005-E3B
-
Displacement: 1.0 L (1,001 cc)
-
Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
-
Fuel System: Indirect Injection (IDI)
-
Material: Cast Iron
-
Valve Configuration: SOHC 6-Valve (2 valves per cylinder)
Performance Data:
-
Power Output: 16-18 kW (21-24 HP) @ 3,000 RPM
-
Torque: 60-68 Nm @ 1,800-2,200 RPM
-
Compression Ratio: 23.0:1 - 24.0:1
-
Firing Order: 1-2-3
Applications:
-
Kubota B2100DT / B2100HSD Compact Tractors
-
Kubota B21 Series (B2150, B2160 variants)
-
Kubota ZD Series zero-turn mowers (select applications)
-
Industrial generator sets (8-15 kVA range)
-
Compact agricultural & landscaping equipment
-
Marine auxiliary and stationary power units
Quick Specifications:
- Part Number: 16027-03043 / 16027-03044
- Engine Code: D1005 / D1005-E / D1005-E3B
- Displacement: 1.0 L (1,001 cc)
- Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
- Fuel System: Indirect Injection (IDI)
- Material: Cast Iron
- Valve Configuration: SOHC 6-Valve (2 valves per cylinder)
Performance Data:
- Power Output: 16-18 kW (21-24 HP) @ 3,000 RPM
- Torque: 60-68 Nm @ 1,800-2,200 RPM
- Compression Ratio: 23.0:1 - 24.0:1
- Firing Order: 1-2-3
Applications:
- Kubota B2100DT / B2100HSD Compact Tractors
- Kubota B21 Series (B2150, B2160 variants)
- Kubota ZD Series zero-turn mowers (select applications)
- Industrial generator sets (8-15 kVA range)
- Compact agricultural & landscaping equipment
- Marine auxiliary and stationary power units
