JAC Shuailing 2.5 HFC4DE3 Engine

  • Engine: HFC4DE3
  • Displacement: 2.5
  • Power:111 kW
  • Torque: 460 N.m
  • Product description: Applications: JAC Efrigerated Trucks JAC Fuel Trucks JAC Light Cargo Trucks
  • INQUIRY

Engine Code

HFC4DE3

Displacement

2.5

Cylinder Number

4 Cylinder

MOQ

1 Pcs

Quality

100% Tested

Condition

100% New

Certification

TS16949,ISO9001

Warranty

1Year/30,000Km

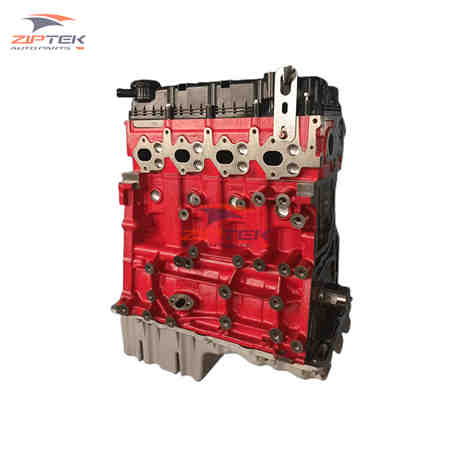

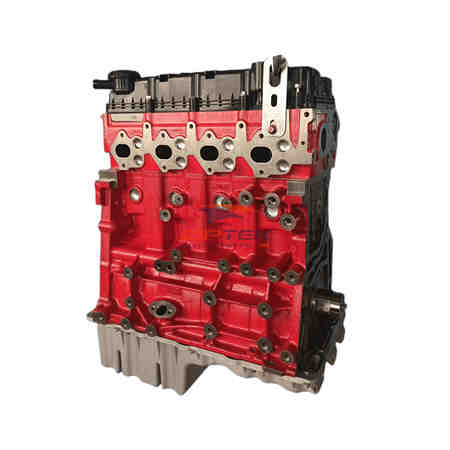

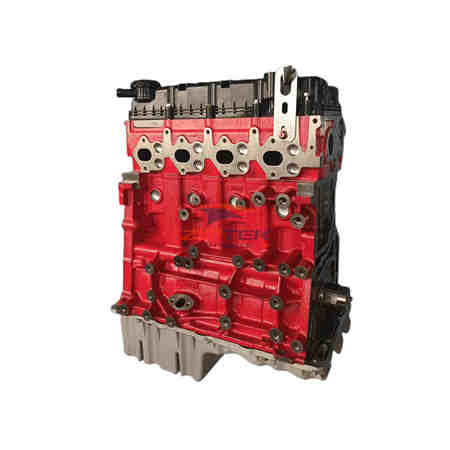

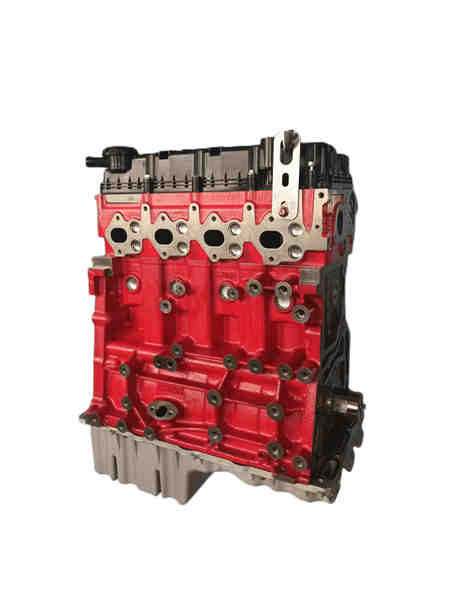

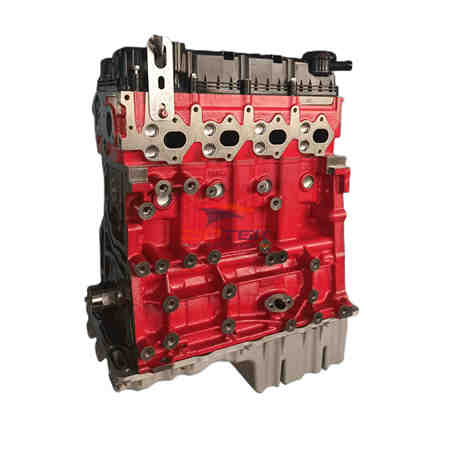

JAC Shuailing 2.5L HFC4DE3 Engine

The Anhui Cummins HFC4DE3 is a 2.5L inline-4 diesel engine designed for light-duty commercial trucks. Featuring turbocharged and intercooled configuration with common rail direct injection, it delivers 160-170 hp and 460 Nm torque. Compatible with JAC Shuailing, Junling V5, and Q8 series models, this China VI compliant engine offers strong low-end torque, fuel efficiency, and reliable performance for urban delivery and regional transport.

Technical Features:

  • Type: Inline-4 Diesel Engine
  • Power Output: 117-125 kW (160-170 HP) @ 2900 RPM
  • Torque: 460 Nm @ 1400-2200 RPM

Engine Parameters:

  • Displacement: 2.5 L (2,499 cc)
  • Bore × Stroke: 93.5 mm × 91 mm
  • Fuel System: Common Rail Direct Injection
  • Configuration: Turbocharged & Intercooled
  • Compression Ratio: 16.5:1
  • Emission Standard: China VI / Euro VI
  • Weight: ~220 kg
  • Cooling: Water-Cooled

Suitable Models:

  • JAC Shuailing S6 / S9 / HS7
  • JAC Junling V5 / A8
  • JAC Shuailing Q6 / Q8
  • Light-duty cargo trucks & refrigerated vans
