Jac

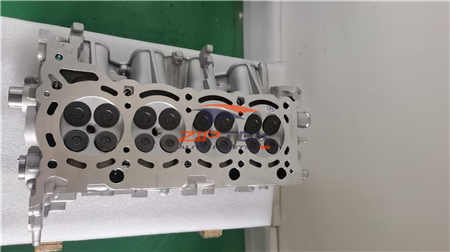

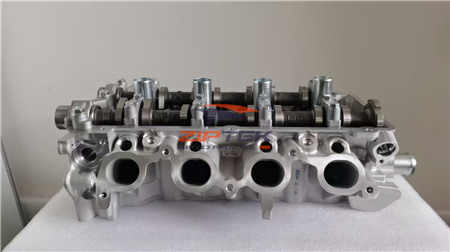

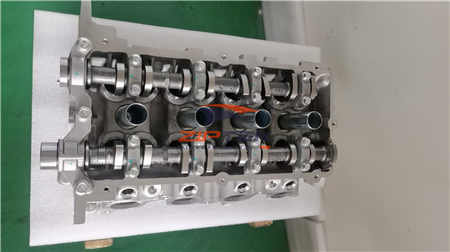

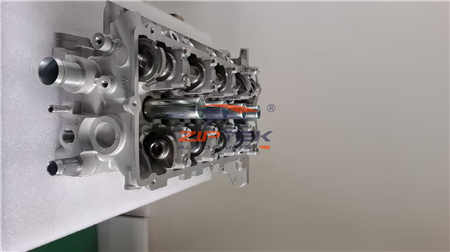

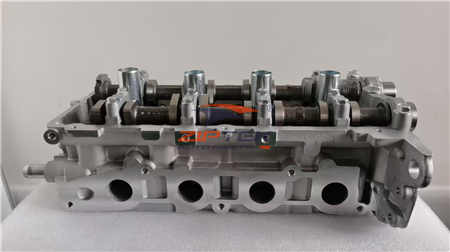

JAC S2 S3 1.5L HFC4GB2.3D Complete Cylinder Head
- Engine: HFC4GB2.3D
- Displacement: 1.5L
- OE NO.:/
- OE NO.: /
- Product description: Applications: JAC S2 JAC S3 JAC J5 JAC J6 JAC ReFine Heyue
|
Engine Code |
HFC4GB2.3D |
|
Displacement |
1.5L |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |
The complete cylinder head assembly for JAC HFC4GB2.3D 1.5L gasoline engine is a precision-engineered component designed for compact SUVs and MPVs. Featuring aluminum alloy construction with DOHC 16-valve configuration and VVT compatibility, this cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.
Technical Features:
-
Part Type: Complete Cylinder Head Assembly
-
Valve Configuration: DOHC 16-Valve + VVT
-
Material: Aluminum Alloy
-
Application: HFC4GB2.3D 1.5L Gasoline Engine
-
Includes: Valves, Springs, Retainers (variant-dependent)
Engine Parameters:
-
Engine Code: HFC4GB2.3D / HFC4GB2.3E
-
Displacement: 1.5 L (1,499 cc)
-
Configuration: Inline-4 DOHC 16V, Naturally Aspirated
-
Power Output: 83-85 kW (113-115 HP) @ 6000 RPM
-
Torque: 146-150 Nm @ 3500-4000 RPM
-
Fuel System: Multi-Point Fuel Injection (MPI)
-
Compression Ratio: 10.5:1
-
Bore × Stroke: 77 mm × 80.5 mm
-
Emission Standard: China V / Euro V
Suitable Models:
-
JAC S2 / S2 Mini
-
JAC S3 / S3 Plus
-
JAC Refine M3 / M4
-
JAC Yueyue / Heyue A30
-
JAC Commercial Vans (select variants)
The complete cylinder head assembly for JAC HFC4GB2.3D 1.5L gasoline engine is a precision-engineered component designed for compact SUVs and MPVs. Featuring aluminum alloy construction with DOHC 16-valve configuration and VVT compatibility, this cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.
Technical Features:
- Part Type: Complete Cylinder Head Assembly
- Valve Configuration: DOHC 16-Valve + VVT
- Material: Aluminum Alloy
- Application: HFC4GB2.3D 1.5L Gasoline Engine
- Includes: Valves, Springs, Retainers (variant-dependent)
Engine Parameters:
- Engine Code: HFC4GB2.3D / HFC4GB2.3E
- Displacement: 1.5 L (1,499 cc)
- Configuration: Inline-4 DOHC 16V, Naturally Aspirated
- Power Output: 83-85 kW (113-115 HP) @ 6000 RPM
- Torque: 146-150 Nm @ 3500-4000 RPM
- Fuel System: Multi-Point Fuel Injection (MPI)
- Compression Ratio: 10.5:1
- Bore × Stroke: 77 mm × 80.5 mm
- Emission Standard: China V / Euro V
Suitable Models:
- JAC S2 / S2 Mini
- JAC S3 / S3 Plus
- JAC Refine M3 / M4
- JAC Yueyue / Heyue A30
- JAC Commercial Vans (select variants)
