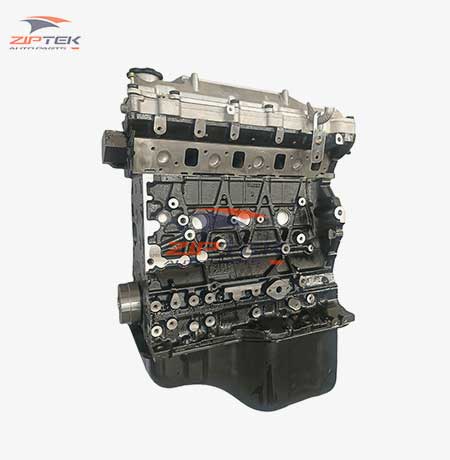

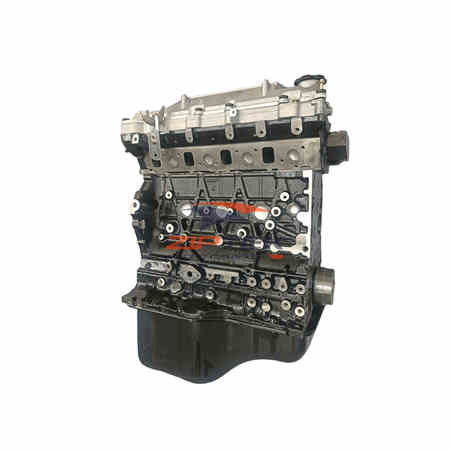

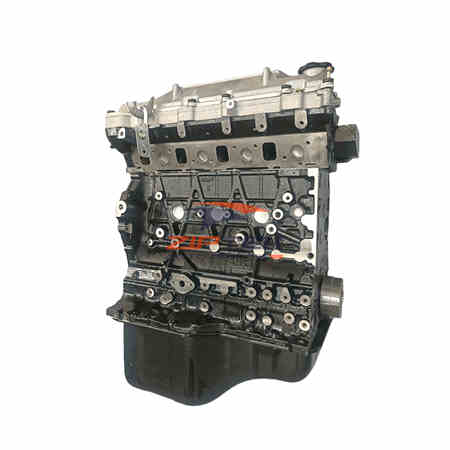

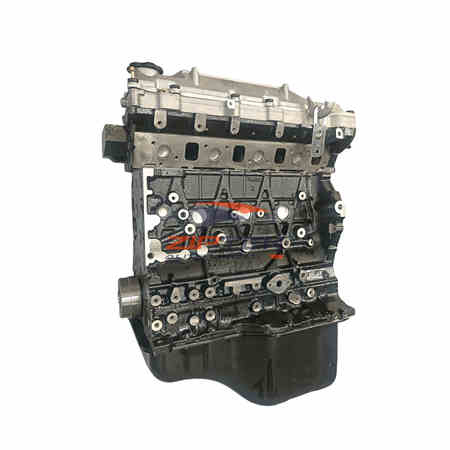

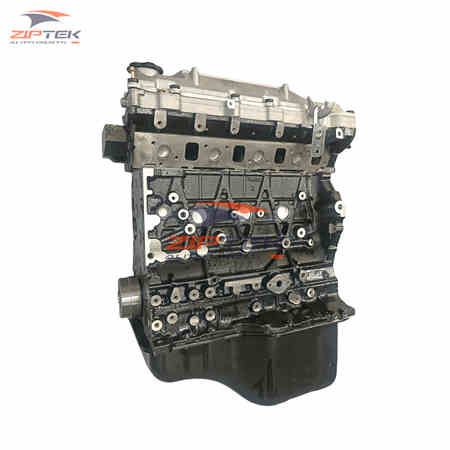

Isuzu NPR400 2006 5.2 4HK1-TCN 4HK1-X Engine

  The Isuzu 5.2L 4HK1 engine (specifically encompassing the 4HK1-TCN commercial truck variant and the 4HK1-X industrial designation) is a legendary and immensely robust inline-4 turbo-diesel engine engineered by Isuzu Motors for medium-duty commercial vehicles and heavy-duty industrial machinery. Renowned globally for its "million-mile" durability, this advanced powertrain features a Single Overhead Camshaft (SOHC) 16-valve configuration driven by highly reliable timing gears, paired with a premium Electronically Controlled High-Pressure Common Rail Direct Injection (CRDi) system. Combined with a heavy-duty Turbocharger and Intercooler, it ensures massive low-end torque delivery, optimized fuel efficiency, and reduced emissions under extreme payloads. With a displacement of 5,193 cc, it produces a broad and highly versatile output range from approximately 150 to 190 hp, and an immense 400 to 510 Nm of torque, depending on the specific tuning variant. This engine is highly compatible with Isuzu's core N-Series commercial lineup, prominently featuring the 2006-era Isuzu NPR400, as well as various heavy construction machinery (e.g., Hitachi excavators utilizing the 4HK1-X). Designed to maximize fleet uptime and minimize total cost of ownership, the 4HK1 engine offers indestructible cast-iron construction, extended service intervals, and a highly accessible global parts ecosystem, making it the ultimate choice for heavy fleet operators and industrial contractors.

Technical Features:

• Type: Inline-4 Turbo-Diesel Engine (Isuzu Heavy-Duty Commercial/Industrial Series)

• Power Output: Approximately 150 hp to 190 hp (110 kW - 140 kW)

• Torque: Up to 400 Nm - 510 Nm

Engine Parameters:

• Displacement: 5,193 cc (5.2L)

• Fuel System: Electronically Controlled High-Pressure Common Rail Direct Injection (CRDi)

• Configuration: SOHC, 16 Valves (4 valves per cylinder), Turbocharged Intercooled, Gear-Driven Camshaft

Suitable Models:

• Isuzu NPR400 / NQR / N-Series (Elf Medium-Duty Commercial Trucks)

• Isuzu Forward (F-Series light/medium-duty applications)

• Hitachi / JCB / Sumitomo / Case (Heavy Excavators and Industrial Machinery utilizing the 4HK1-X)
