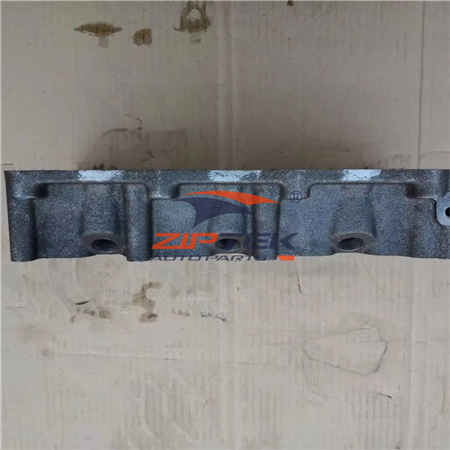

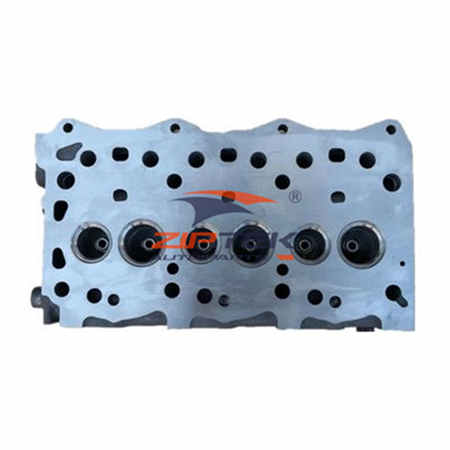

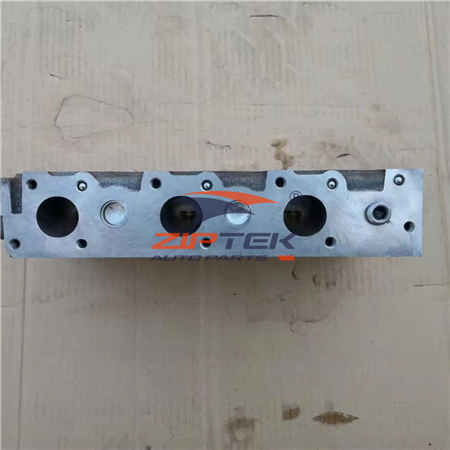

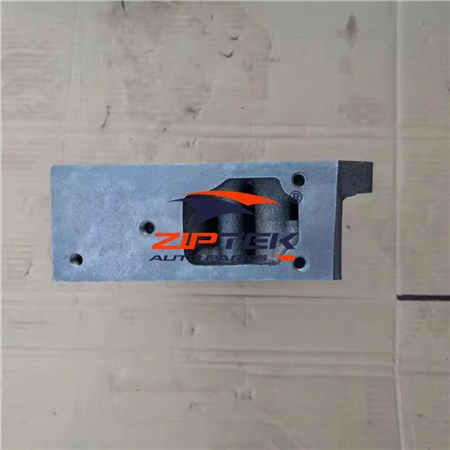

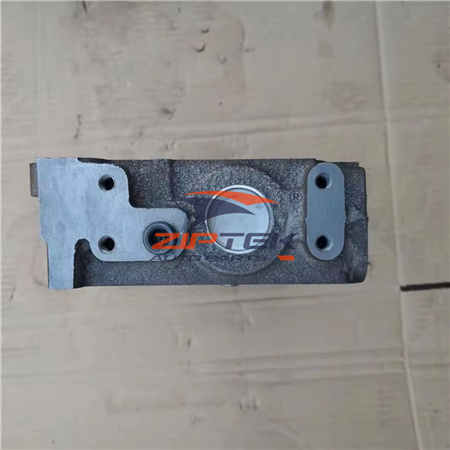

The cylinder head with reference number 8-97163401-0 is designed for Isuzu 3LD1 1.1L-1.3L naturally aspirated diesel engines. This cast iron cylinder head features SOHC 6-valve configuration (2 valves per cylinder, 3-cylinder), compatible with Isuzu industrial machinery, small construction equipment, generators, and agricultural applications.

---

Quick Specifications:

• Part Number: 8-97163401-0 / 8971634010
• Engine Code: 3LD1 / 3LD1-T (Isuzu Industrial Diesel Family)
• Displacement: 1.1 L - 1.3 L (1,105-1,299 cc)
• Configuration: Inline-3 SOHC, Naturally Aspirated Diesel
• Fuel System: Indirect Injection (IDI) / Distributor Pump
• Material: Cast Iron
• Valve Configuration: SOHC 6-Valve (2 valves per cylinder)

---

Performance Data:

• Power Output: 18-26 kW (24-35 HP) @ 3,000 RPM
• Torque: 75-95 Nm @ 1,800-2,200 RPM
• Compression Ratio: 23.0:1 - 24.0:1
• Firing Order: 1-2-3

---

Applications:

• Isuzu industrial generators & pump sets
• Small construction equipment (mini excavators, compactors)
• Agricultural machinery (tillers, sprayers, harvesters)
• Material handling equipment (forklifts, pallet jacks)
• Marine auxiliary power units
• Stationary industrial power applications
