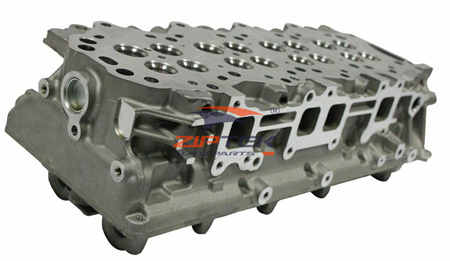

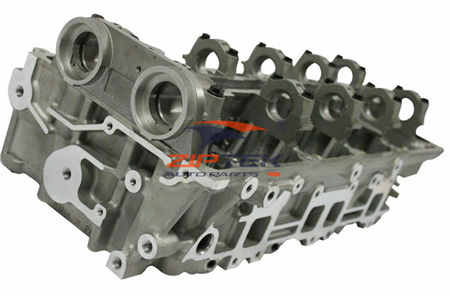

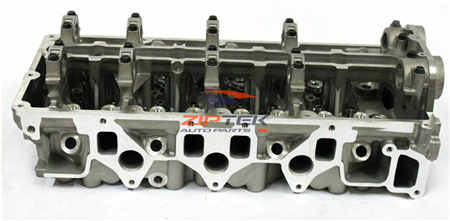

he cylinder head with reference numbers 1449076 and 4986980 is designed for Ford/Mazda WL-T / WE-T 2.5L turbocharged diesel engines. This cast iron cylinder head features SOHC 8-valve configuration, delivering reliable performance for Ford Ranger, Mazda BT-50, and related pickup truck platforms.

---

Quick Specifications:

• Part Numbers: 1449076 / 4986980 (Ford/Mazda OEM format)
• Engine Codes: WL-T / WE-T / J97MU (2.5 TDI family)
• Displacement: 2.5 L (2,499 cc)
• Configuration: Inline-4 SOHC 8V, Turbocharged Diesel
• Fuel System: Direct Injection (DI) with Distributor Pump
• Material: Cast Iron
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)

---

Performance Data:

• Power Output: 80-92 kW (109-125 HP) @ 3,500 RPM
• Torque: 266-330 Nm @ 1,800-2,000 RPM
• Compression Ratio: 21.5:1 - 22.0:1
• Emission Standard: Euro 3 / Euro 4

---

Applications:

• Ford Ranger MK2 / MK3 (2006-2015, 2.5 TDI variants)
• Mazda BT-50 (2006-2015, 2.5 TDI variants)
• Ford Courier / Mazda Proceed (select 2.5 TDI applications)
• Commercial pickup, chassis cab & utility vehicle conversions
• Aftermarket engine replacement & repower projects
