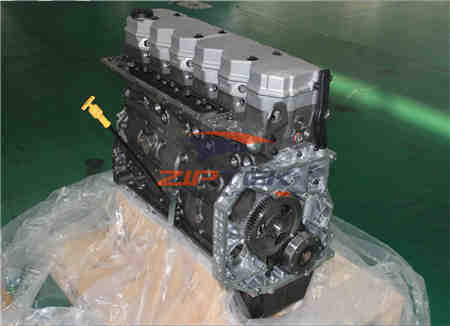

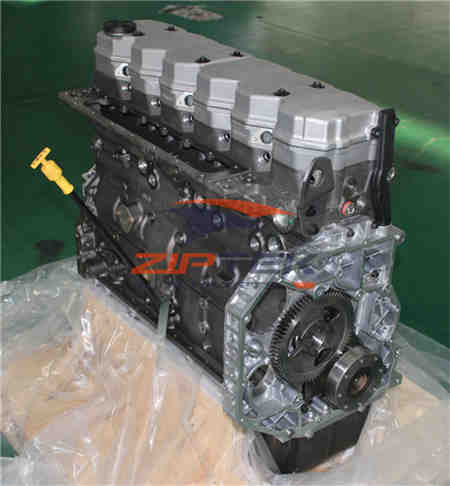

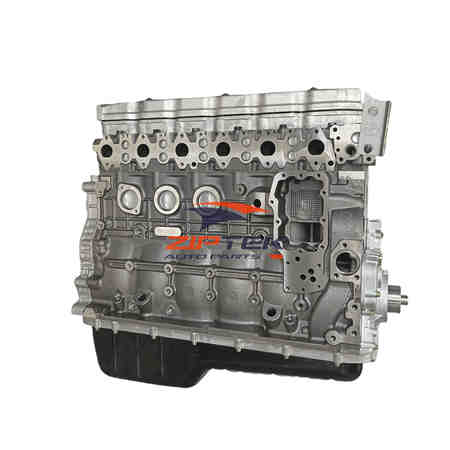

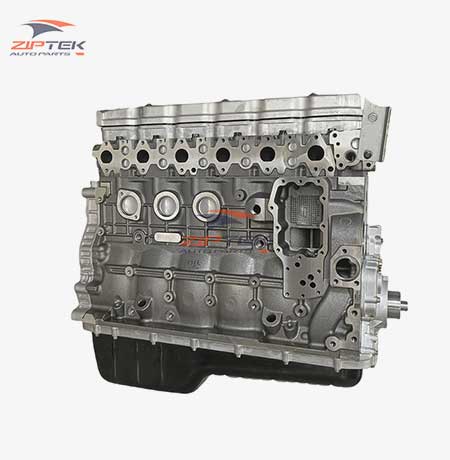

Cummins Marine 6.7L QSB7 6D107 QSB6.7 Engine
- Engine: QSB6.7
- Displacement: 6.7L
- Power:172 - 410 kW
- Torque: 976 - 1695N.m
- Product description: Applications: JAC Efrigerated Trucks JAC Fuel Trucks JAC Light Cargo Trucks
|
Engine Code |
QSB6.7 |
|
Displacement |
6.7 |
|
Cylinder Number |
4 Cylinder |
|
MOQ |
1 Pcs |
|
Quality |
100% Tested |
|
Condition |
100% New |
|
Certification |
TS16949,ISO9001 |
|
Warranty |
1Year/30,000Km |
The Cummins QSB6.7 is a 6.7L inline-6 diesel engine designed for marine propulsion and industrial applications. Featuring turbocharged and aftercooled configuration with high-pressure common rail fuel system, it delivers 230-550 hp and 900-1600 Nm torque. Compatible with workboats, fishing vessels, patrol craft, and generator sets, this versatile engine offers fuel efficiency, low emissions, and reliable performance for demanding marine environments.
Technical Features:
-
Type: Inline-6 Diesel Engine
-
Power Output: 172-410 kW (230-550 HP) @ 2200-2600 RPM
-
Torque: 900-1600 Nm @ 1400-1600 RPM
Engine Parameters:
-
Displacement: 6.7 L (6,692 cc)
-
Bore × Stroke: 107 mm × 124 mm
-
Fuel System: High-Pressure Common Rail (HPCR)
-
Configuration: Turbocharged & Aftercooled
-
Compression Ratio: 17.3:1
-
Emission Standard: IMO II / EPA Tier 2-3 / Euro III-V
-
Weight: ~530 kg
-
Cooling: Keel / Heat Exchanger / Raw Water
Suitable Models:
-
Workboats & Fishing Vessels
-
Patrol & Pilot Boats
-
Yachts & Leisure Craft
-
Marine Generator Sets
-
Industrial & Construction Equipment
